The RAF Museum Cosford required their vast reserve collection to be consolidated into one new building and required the reserve collection to not only be stored but to give the opportunity for the visiting public to tour the building and enjoy and be educated by the collection.
My concept for this project was to capture the movement of aerobatic displays or smoke trails of fighting aircraft (as depicted in "The Battle of Britain - Paul Nash"), whilst creating a smart building complying with NetZero targets.

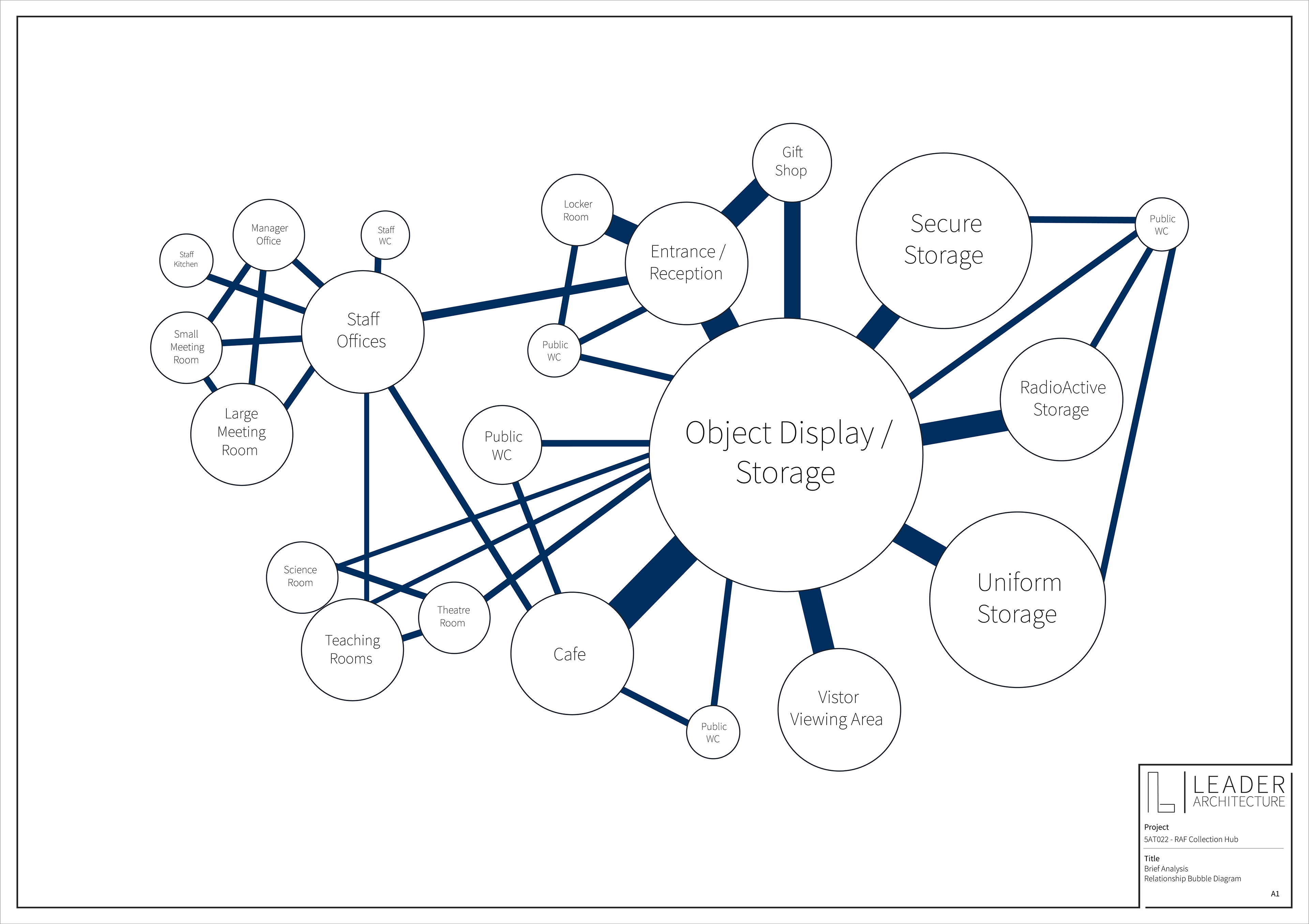

Project Concept
The Battle Of Britain - Paul Nash
Project Drawings

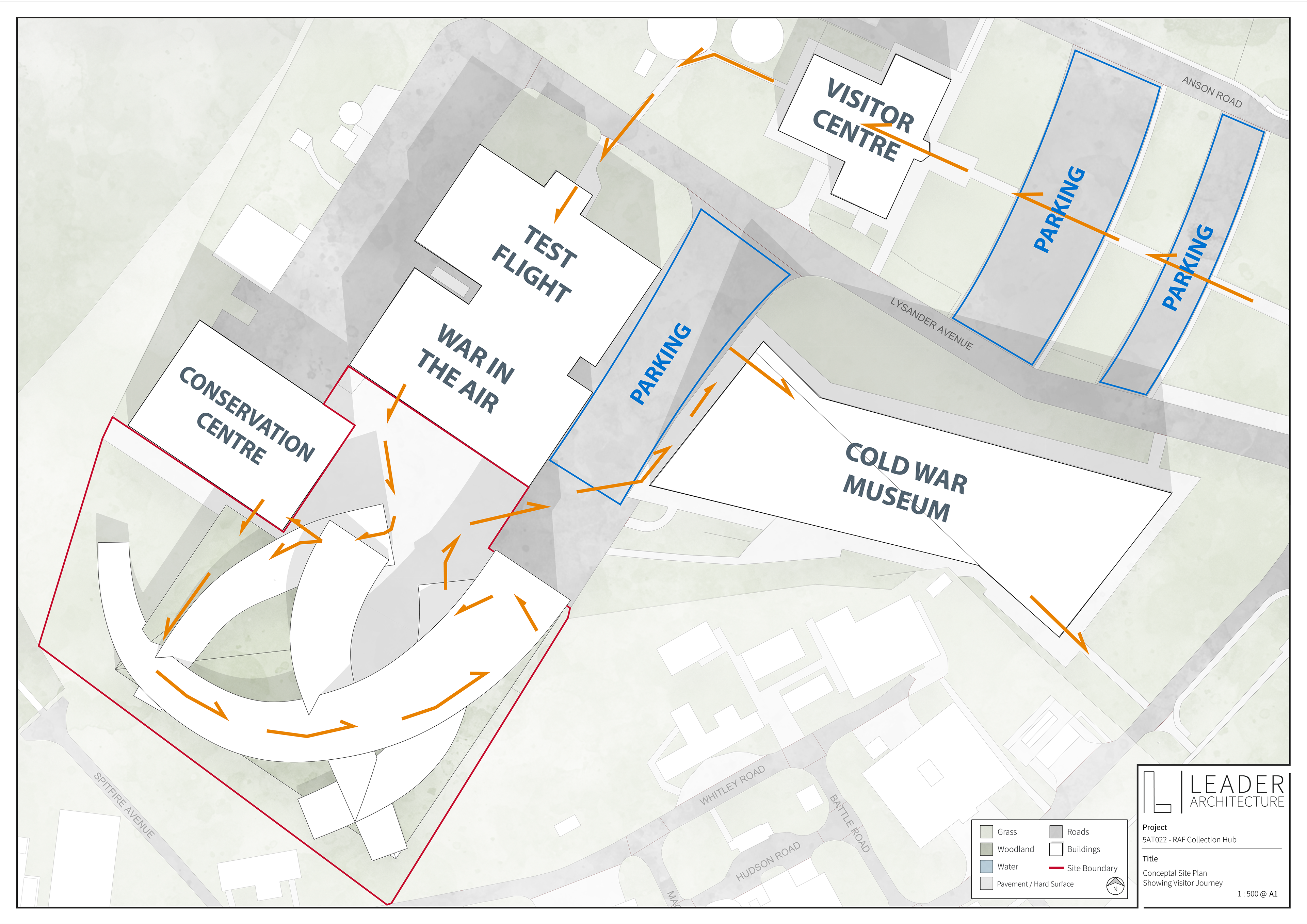

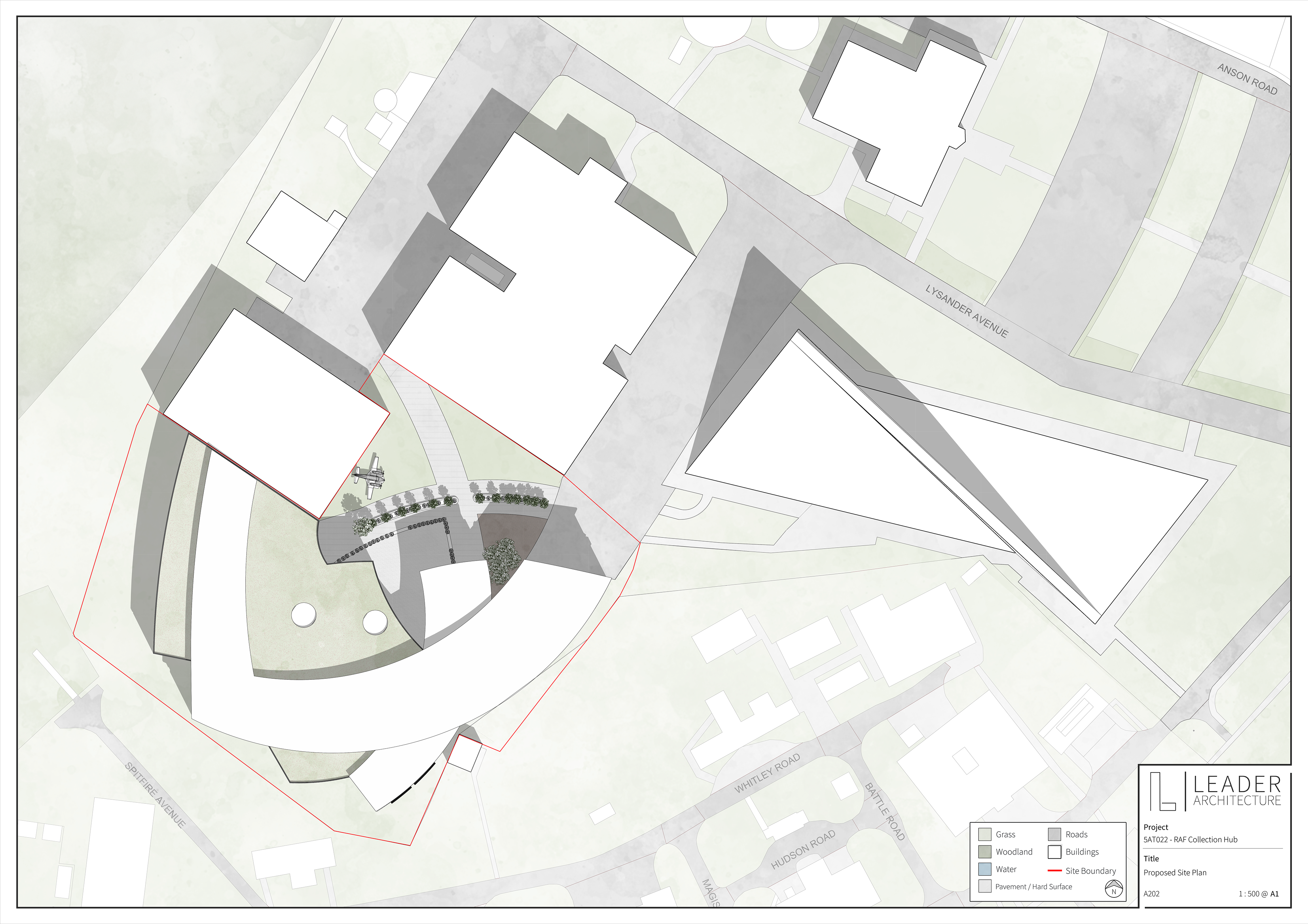

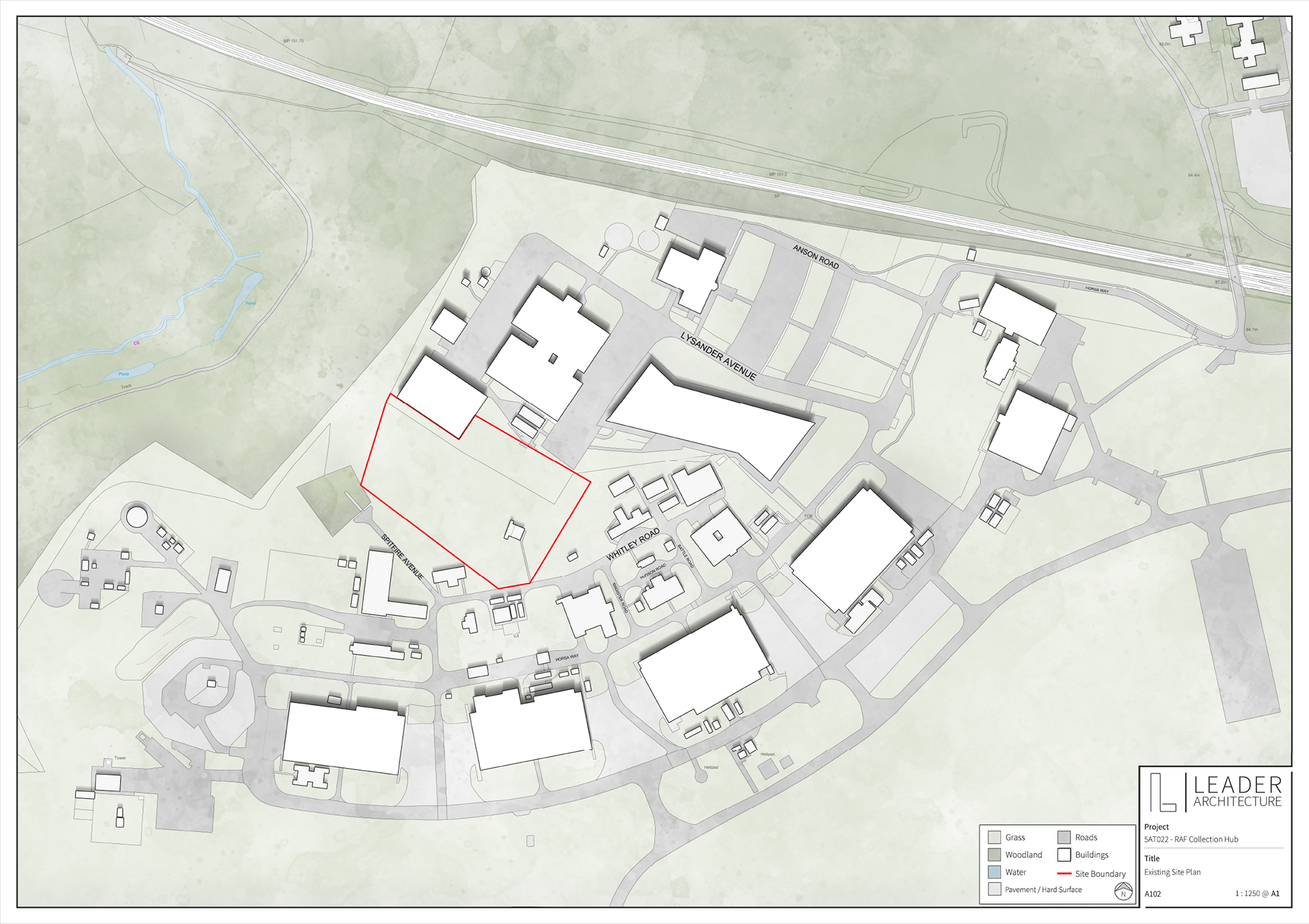

Site Plan

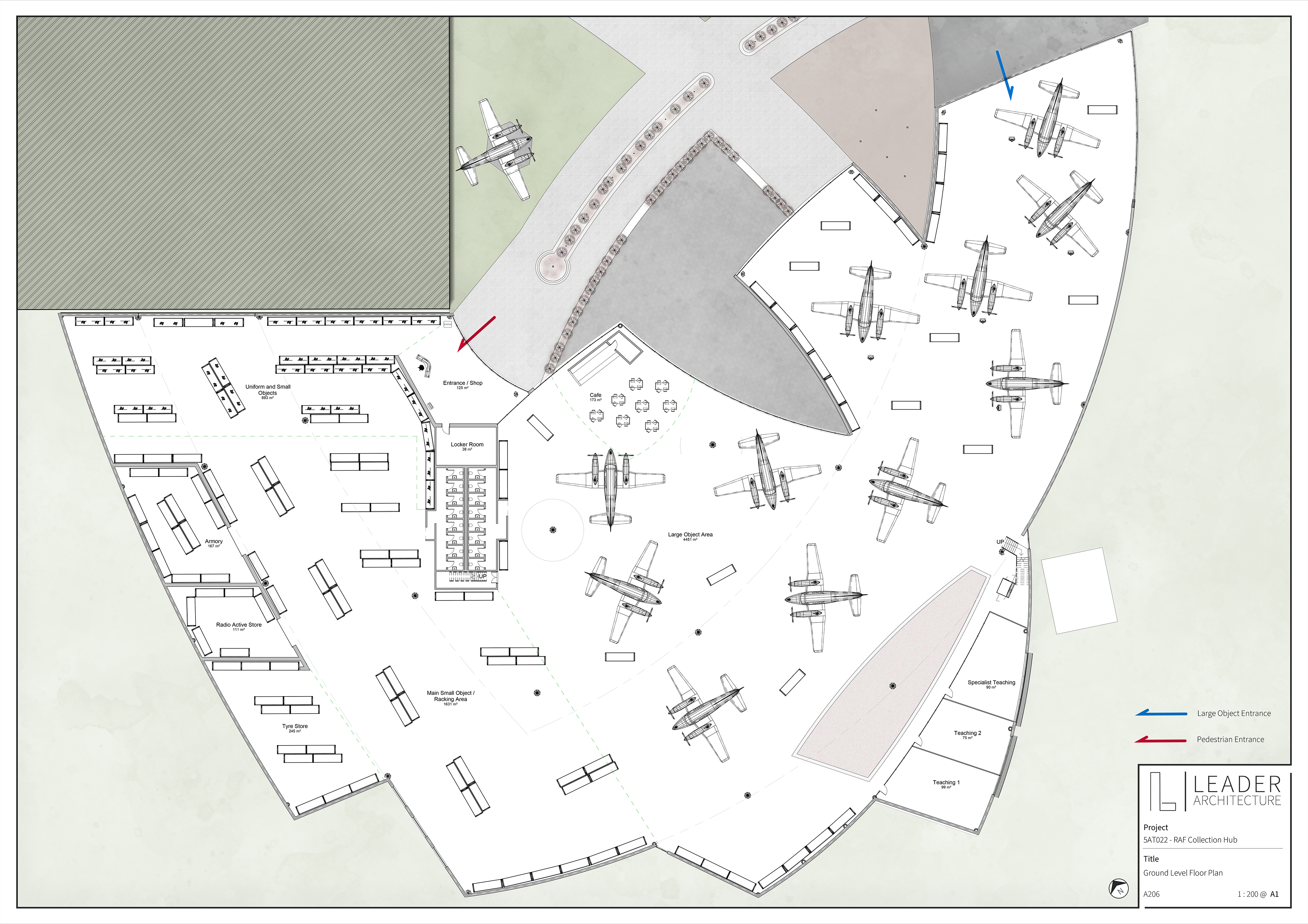

Ground Floor Plan

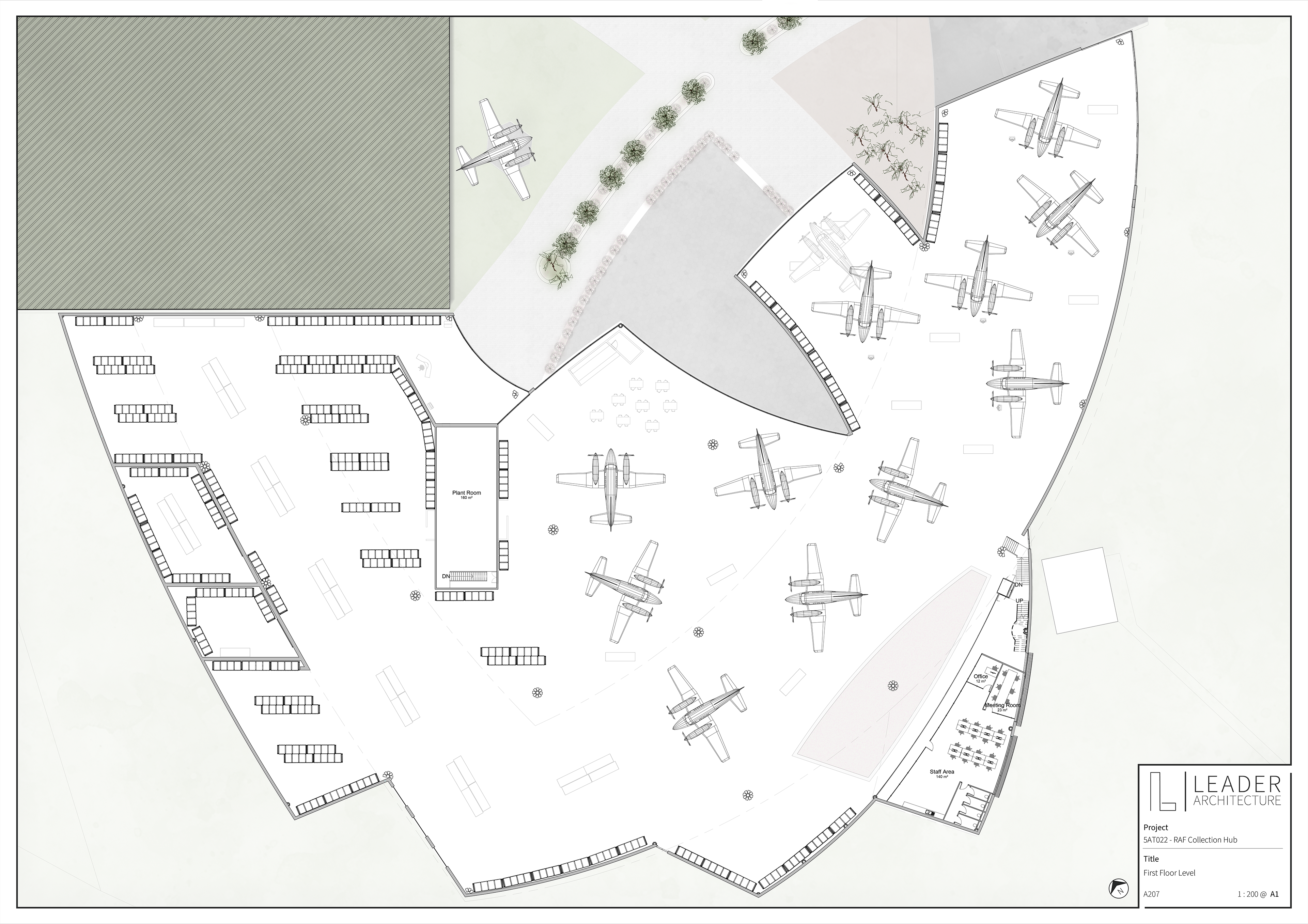

First Floor Plan

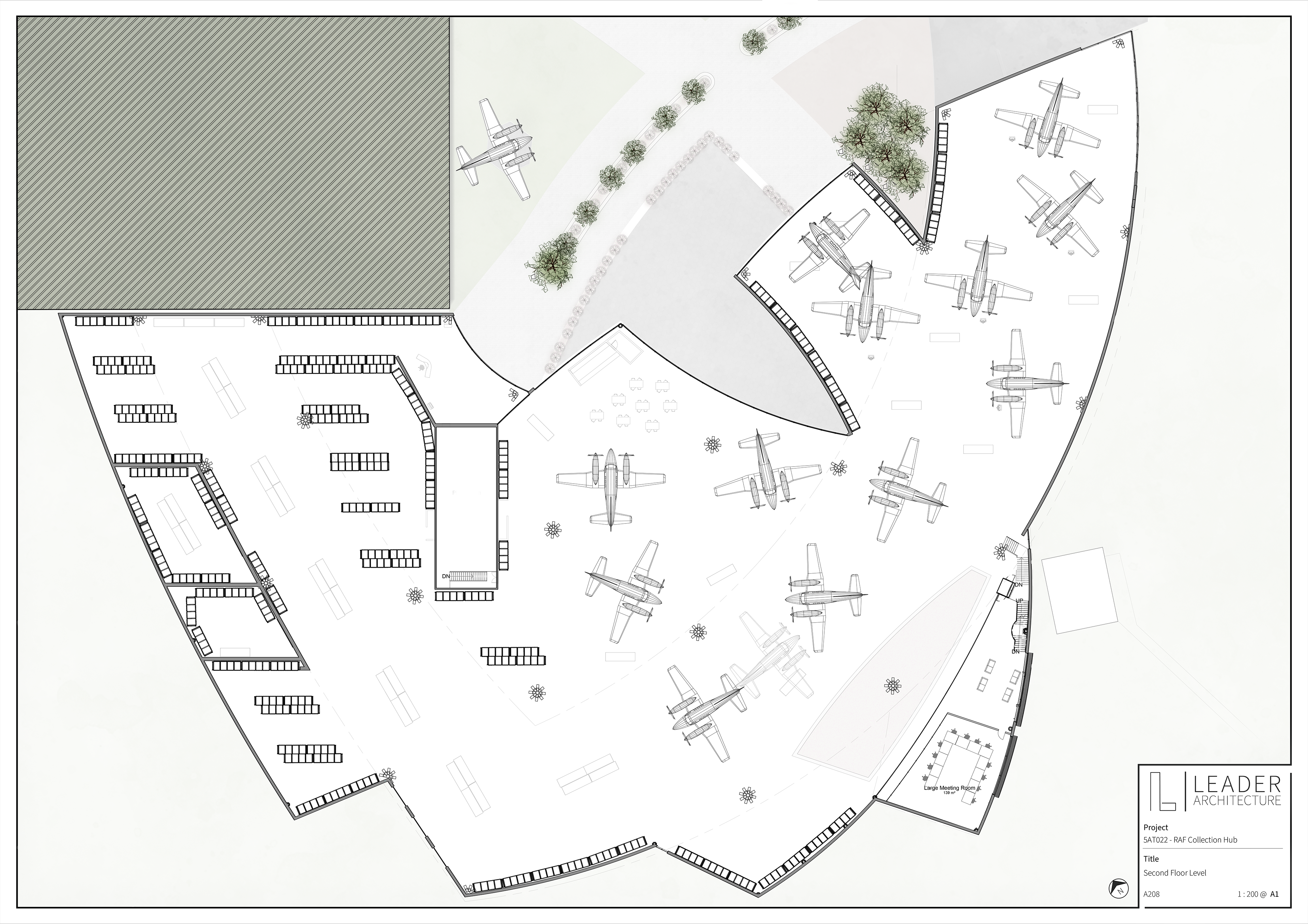

Second Floor Plan

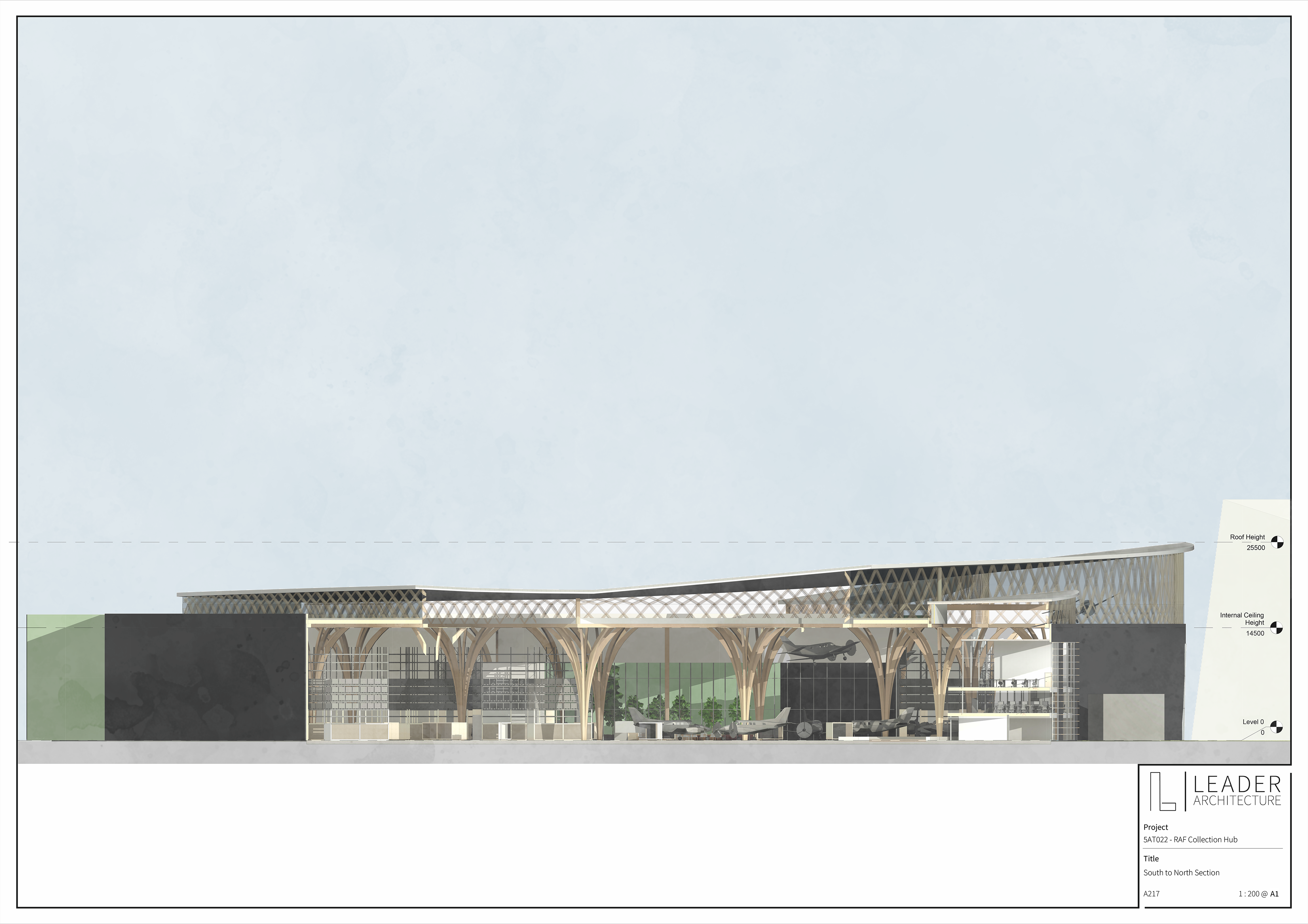

North to South Section

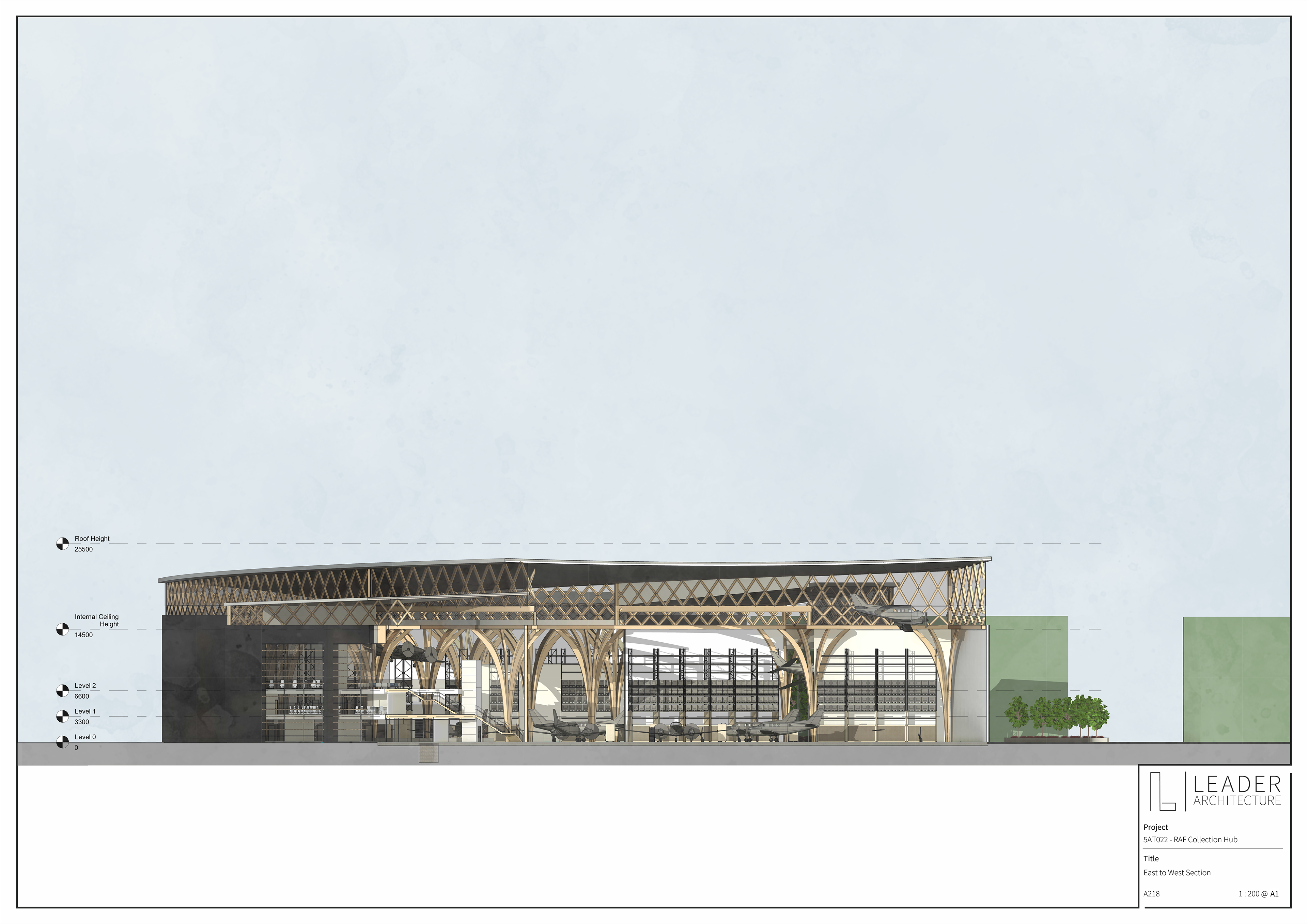

East to West Section

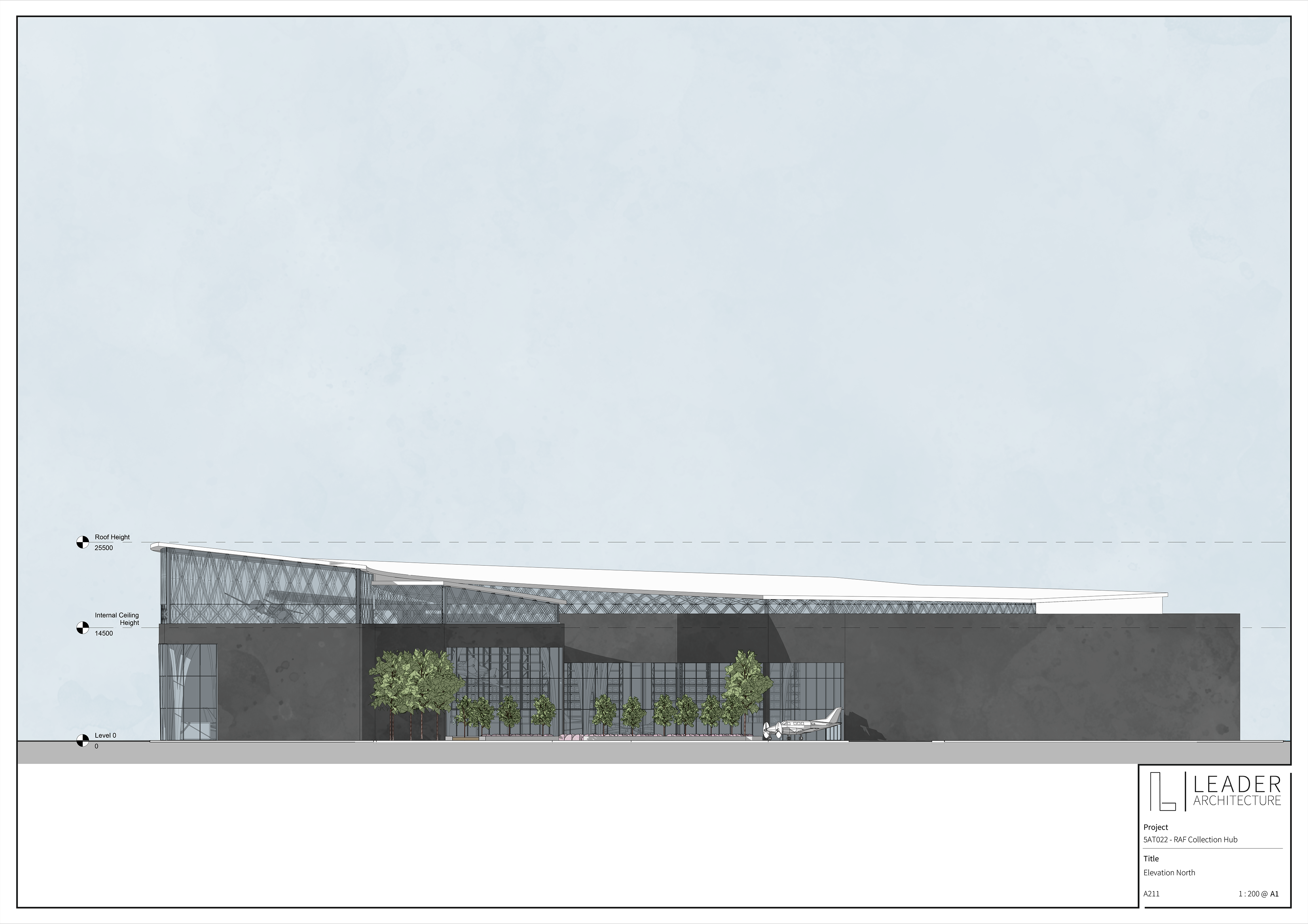

North Elevation

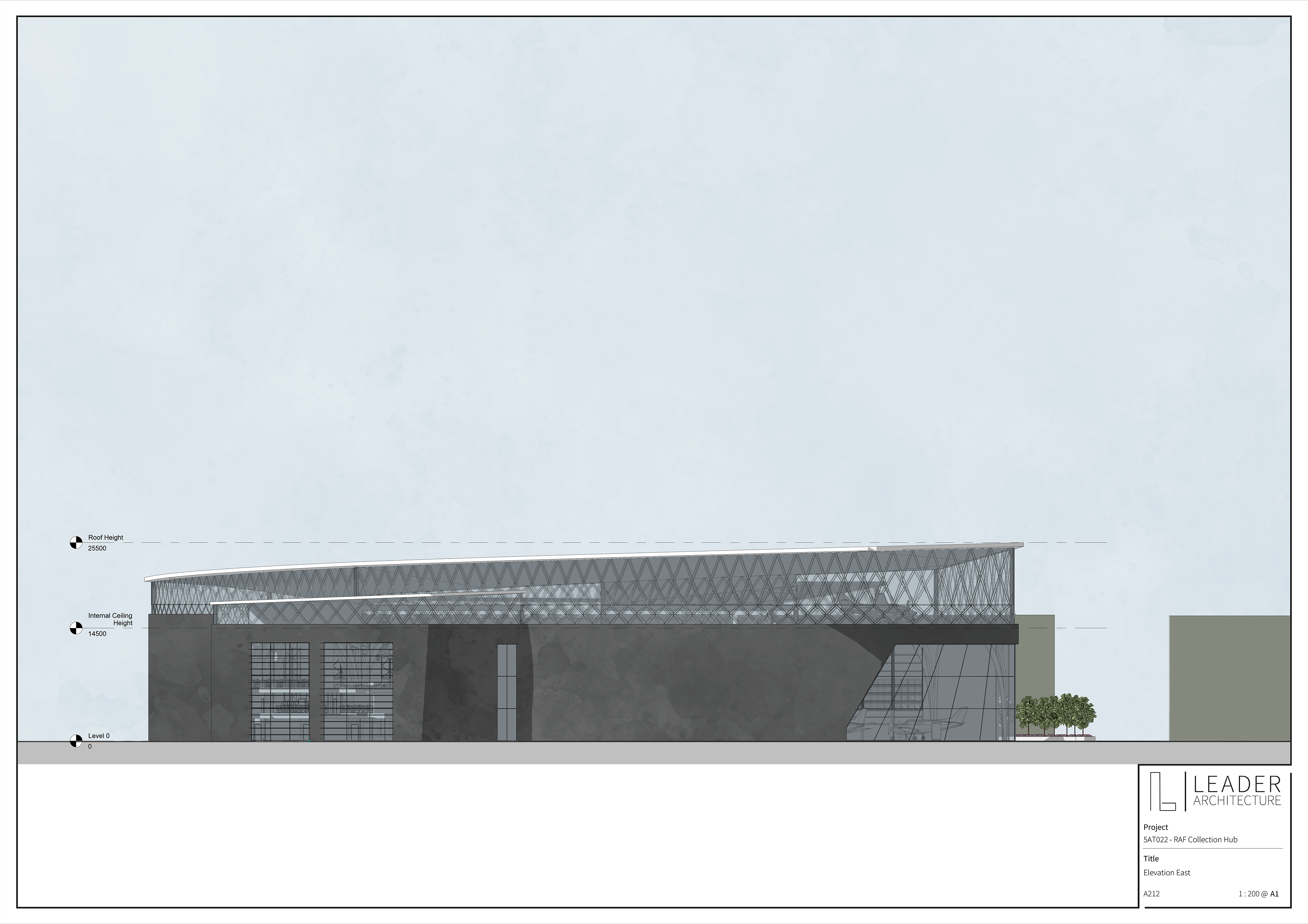

East Elevation

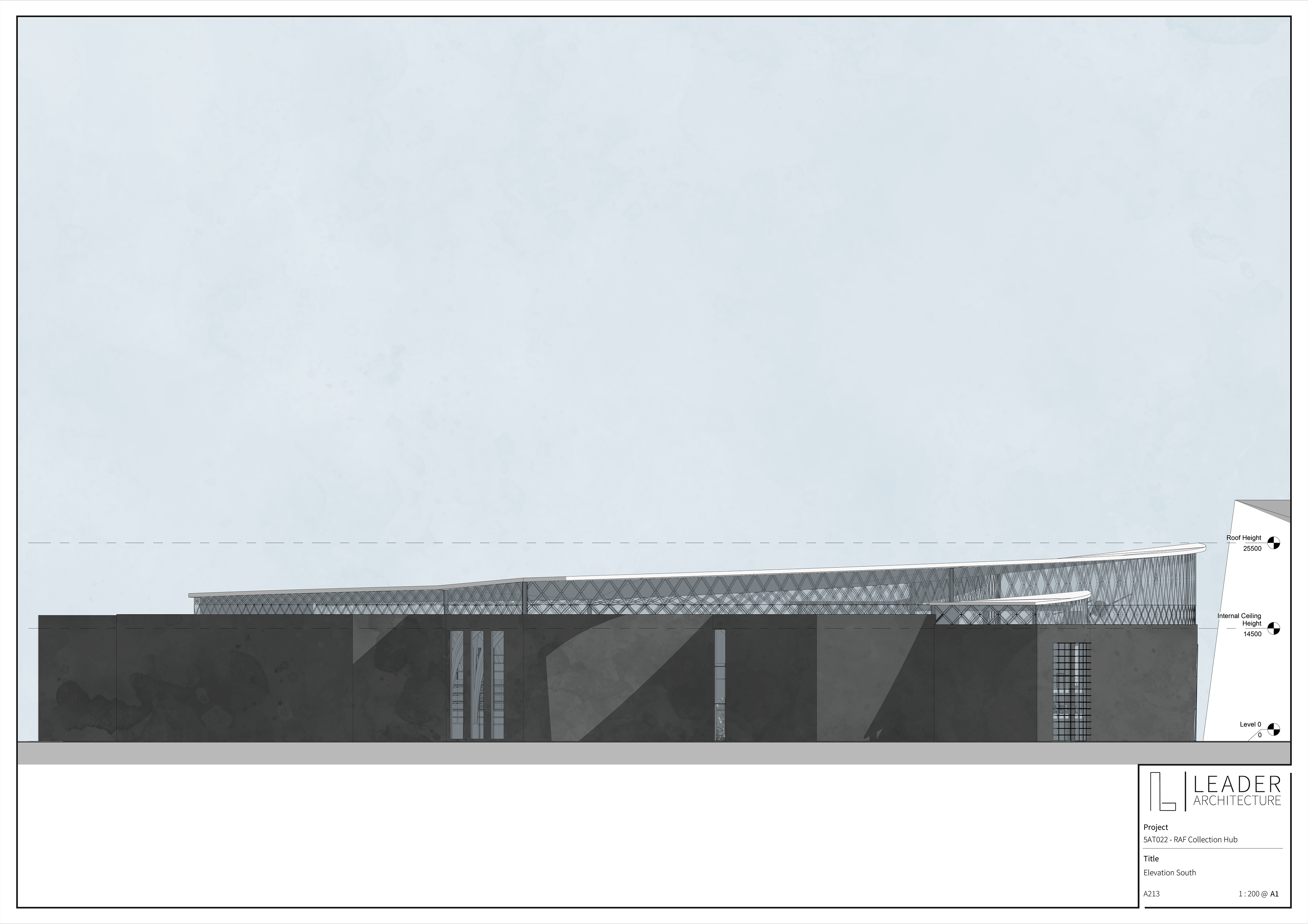

South Elevation
West Elevation

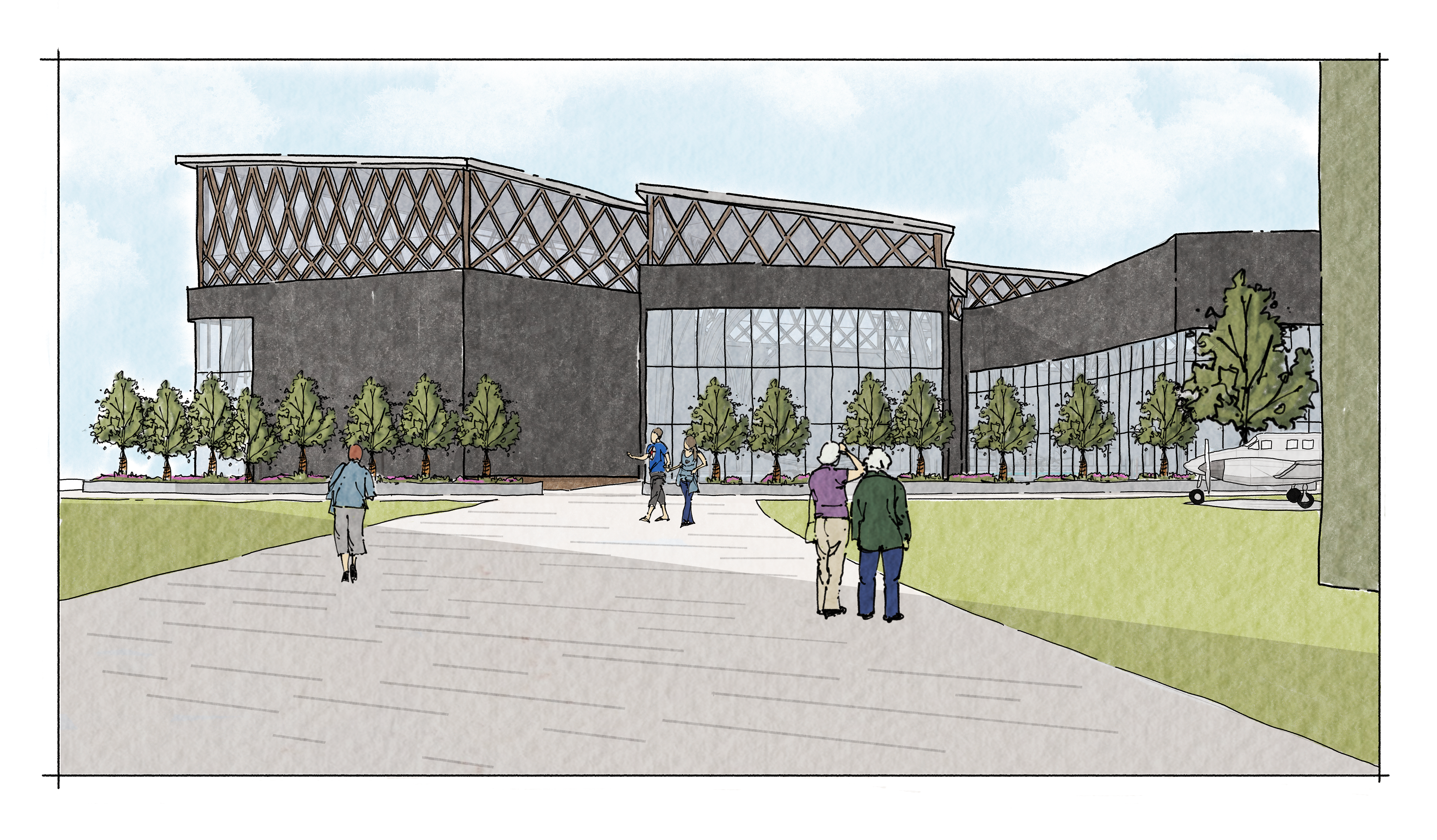

Hand Drawn Perspective

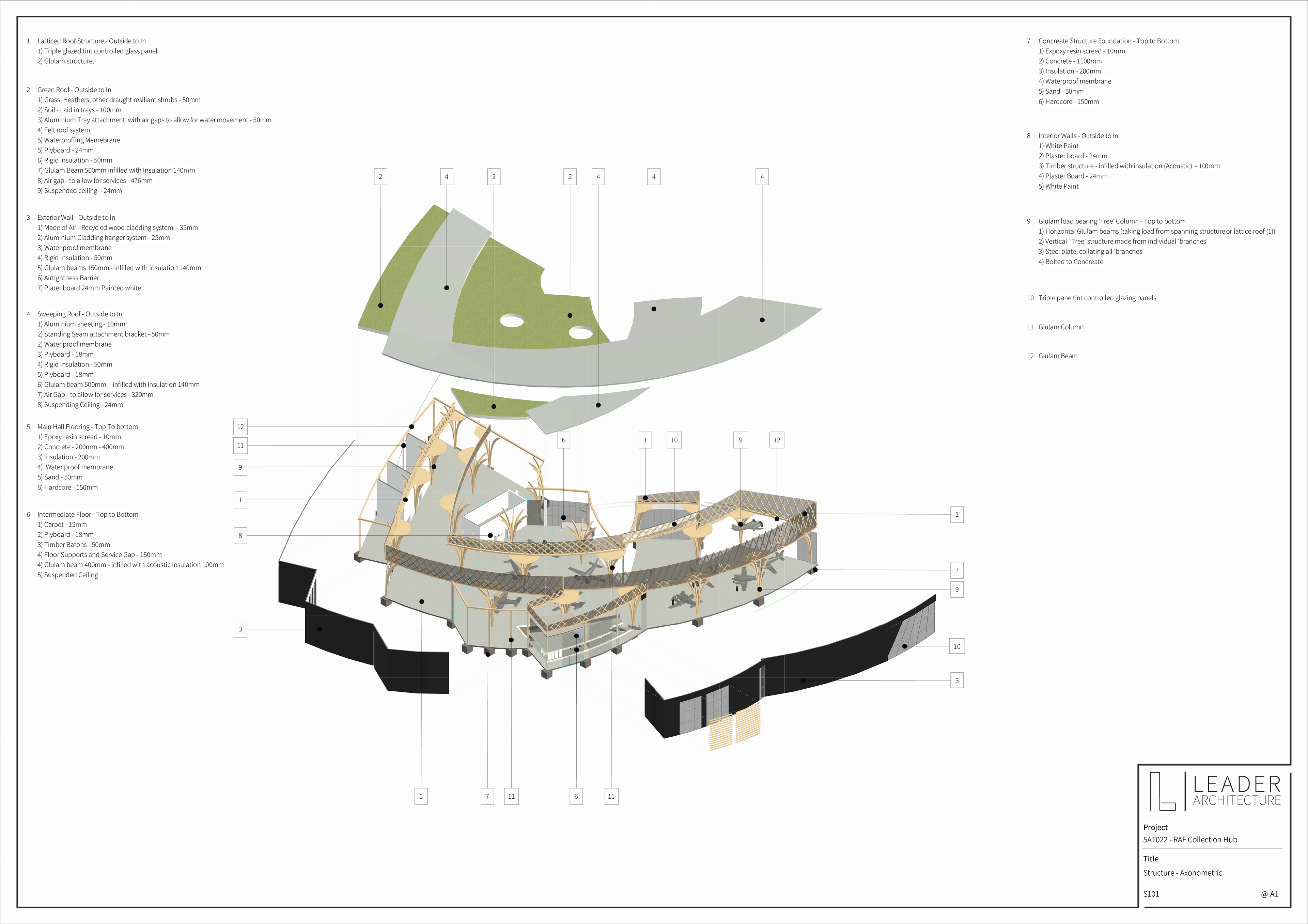

Construction Axonometric

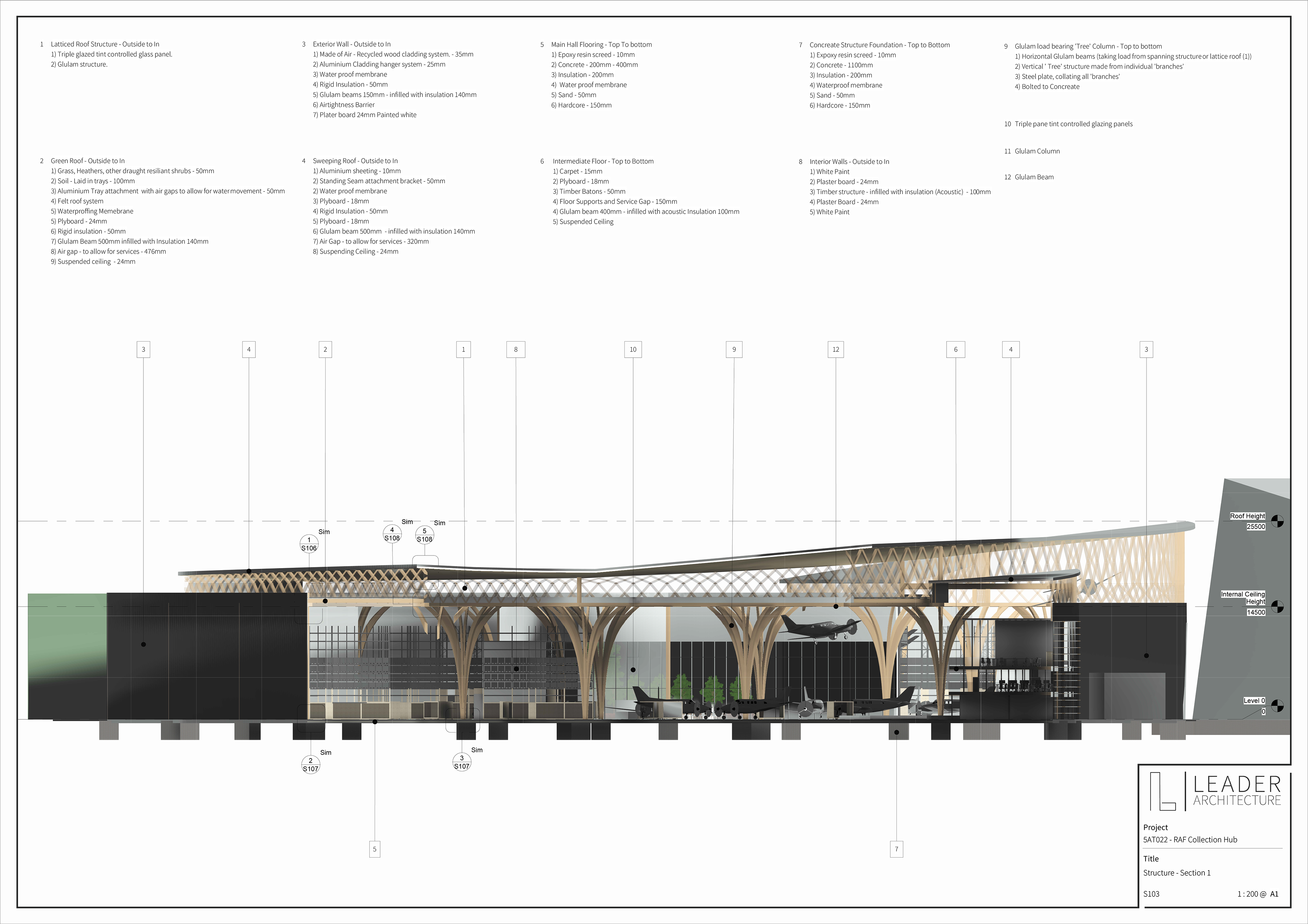

Construction Section

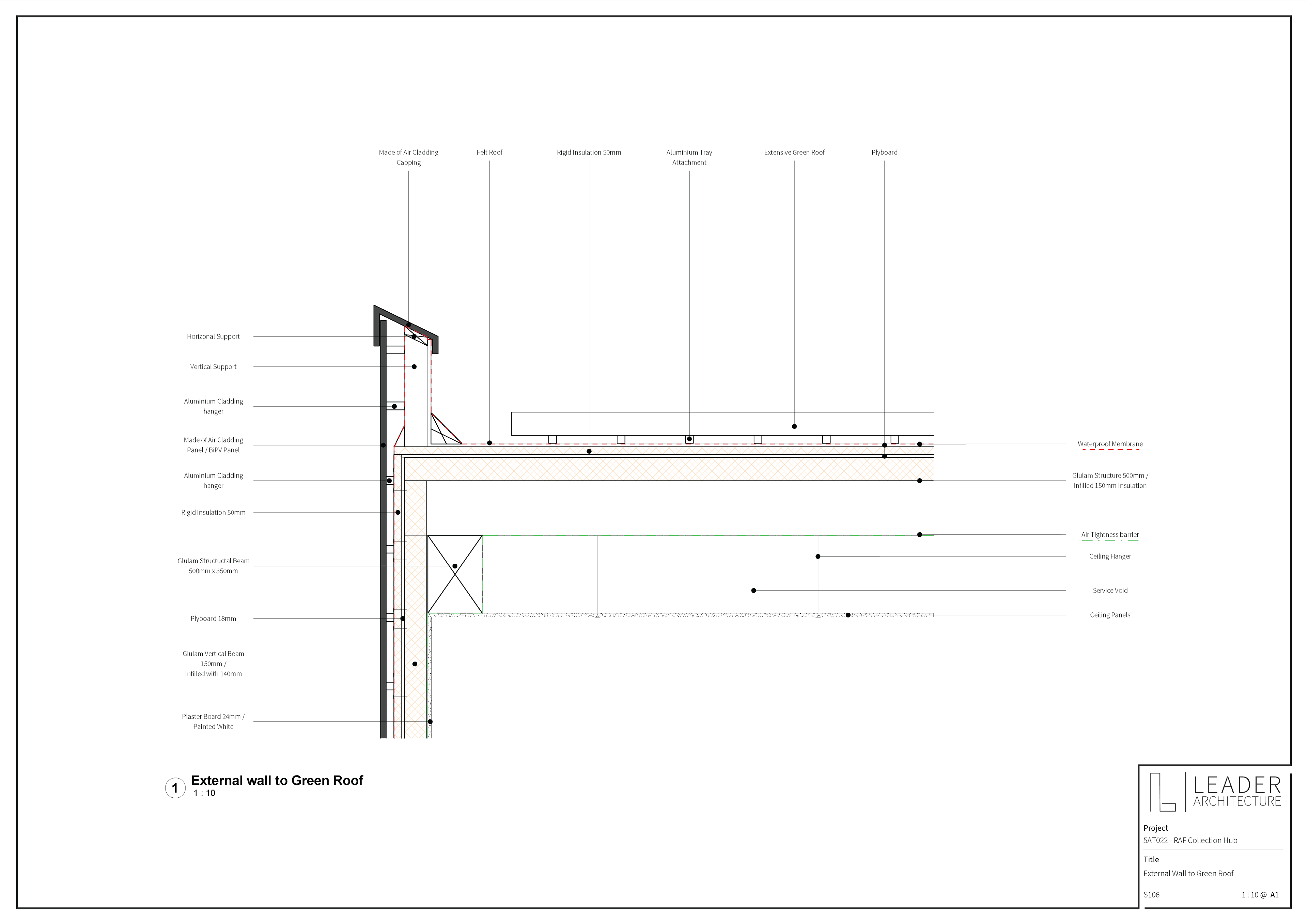

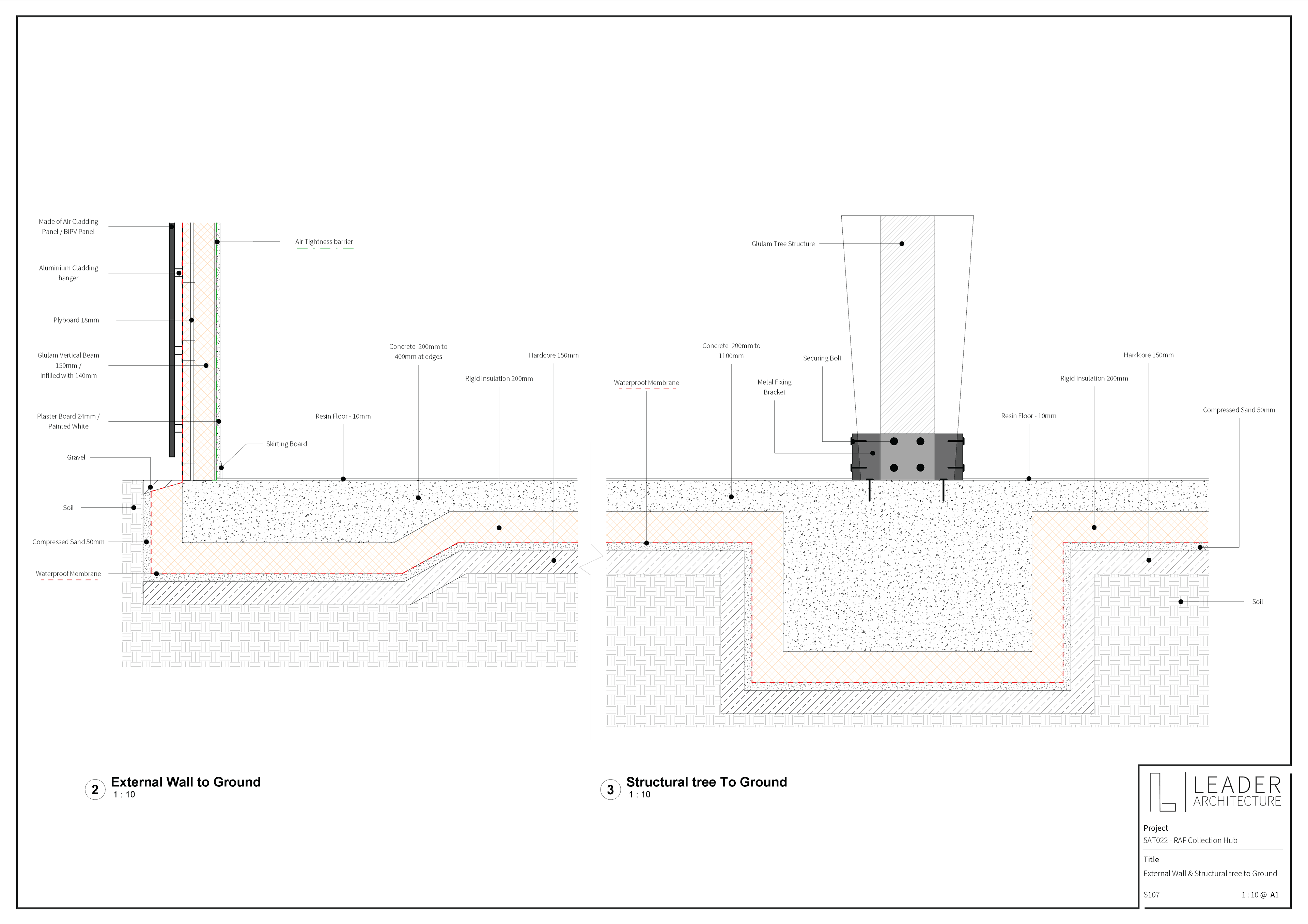

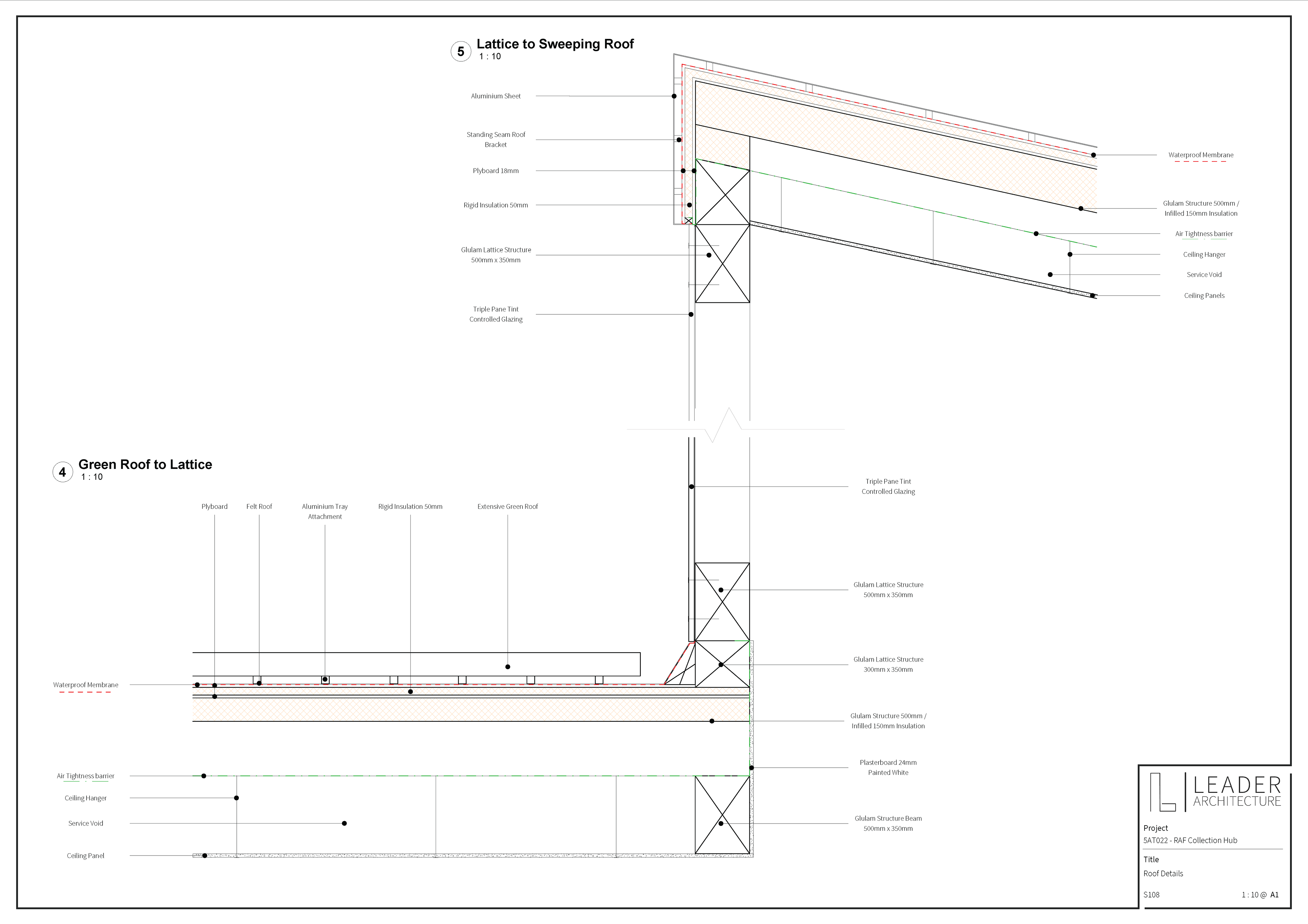

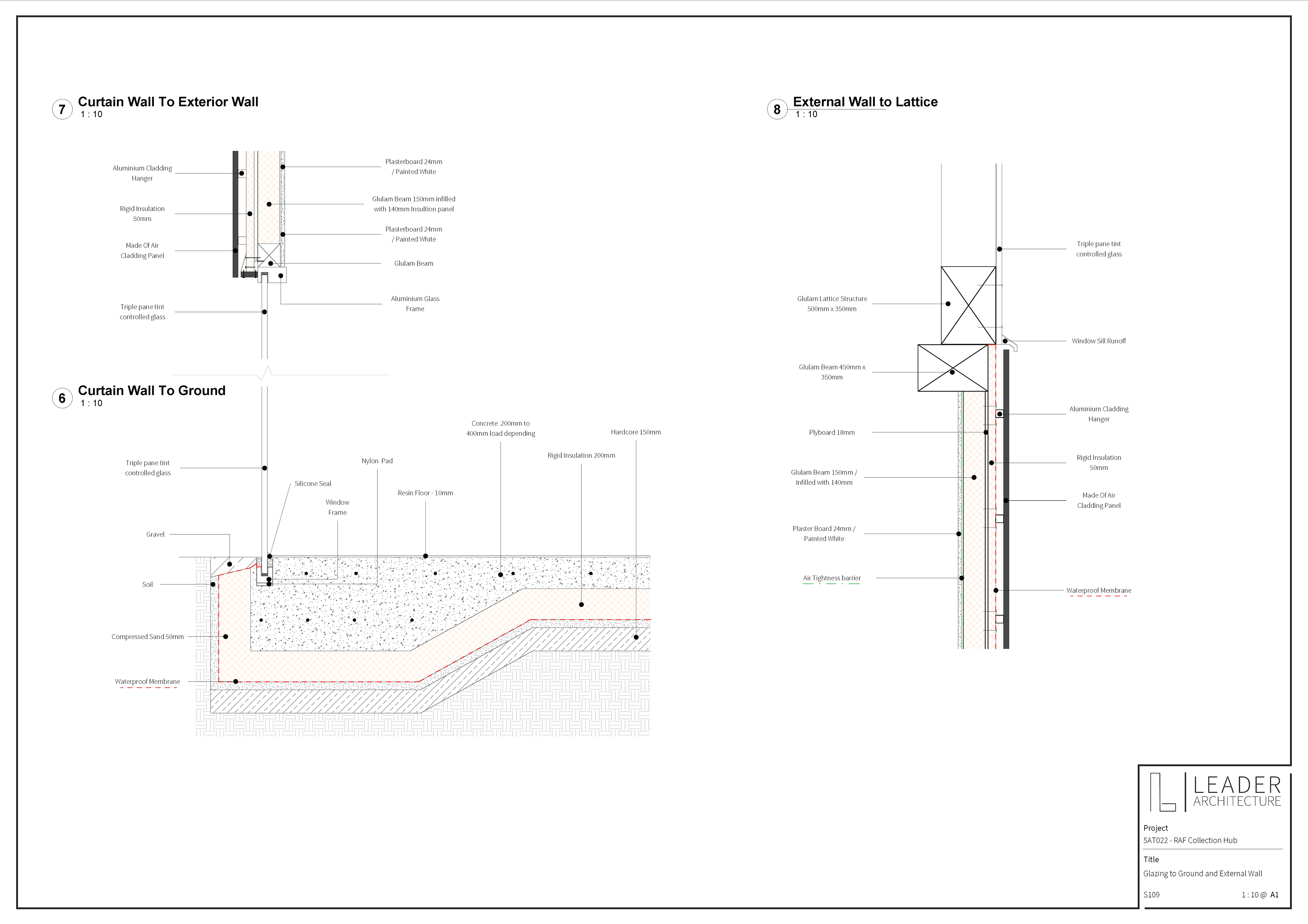

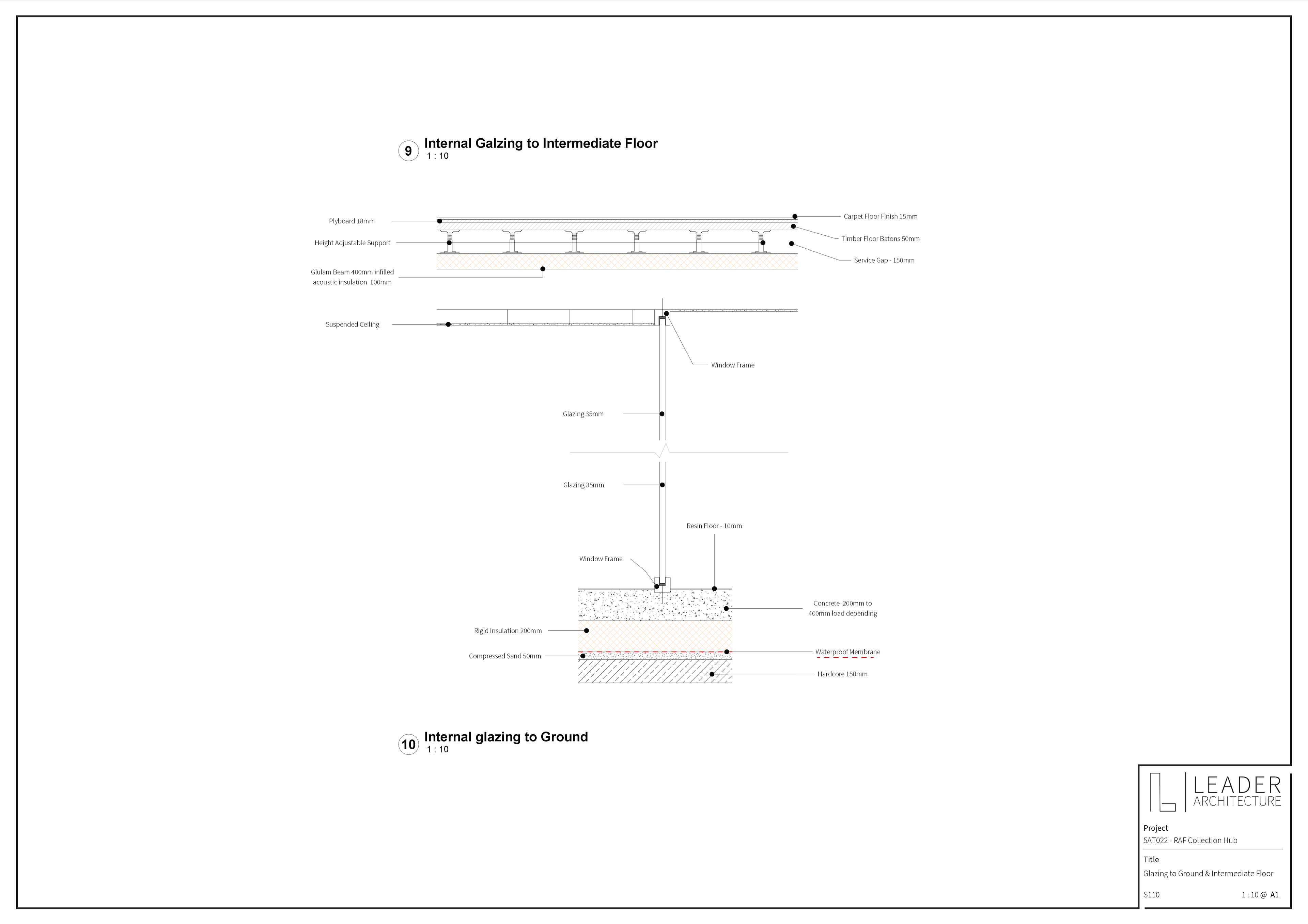

Construction Detail
Construction Detail
Construction Detail
Construction Detail
Construction Detail
Visualisations

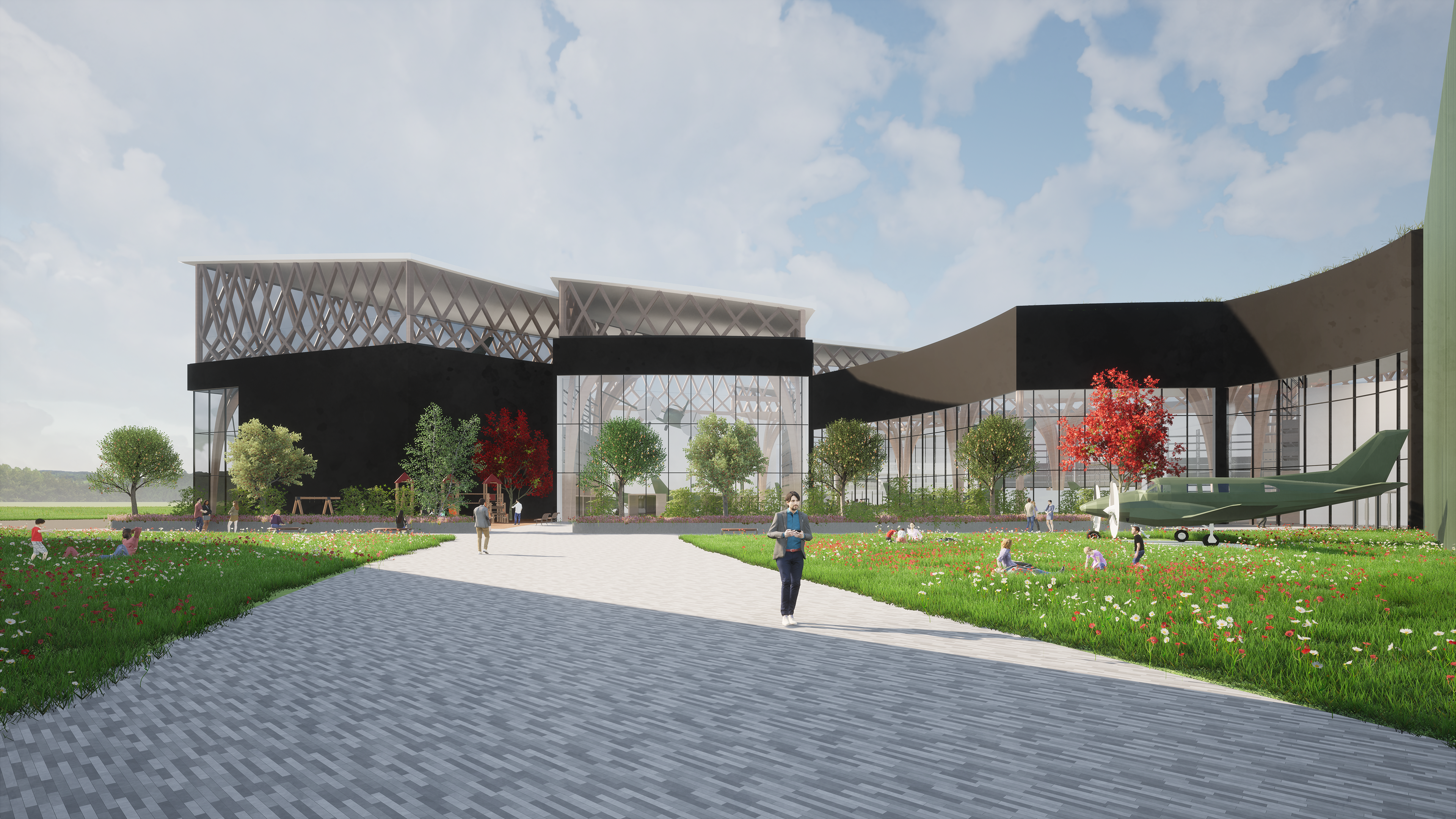

View from exit of hanger 3

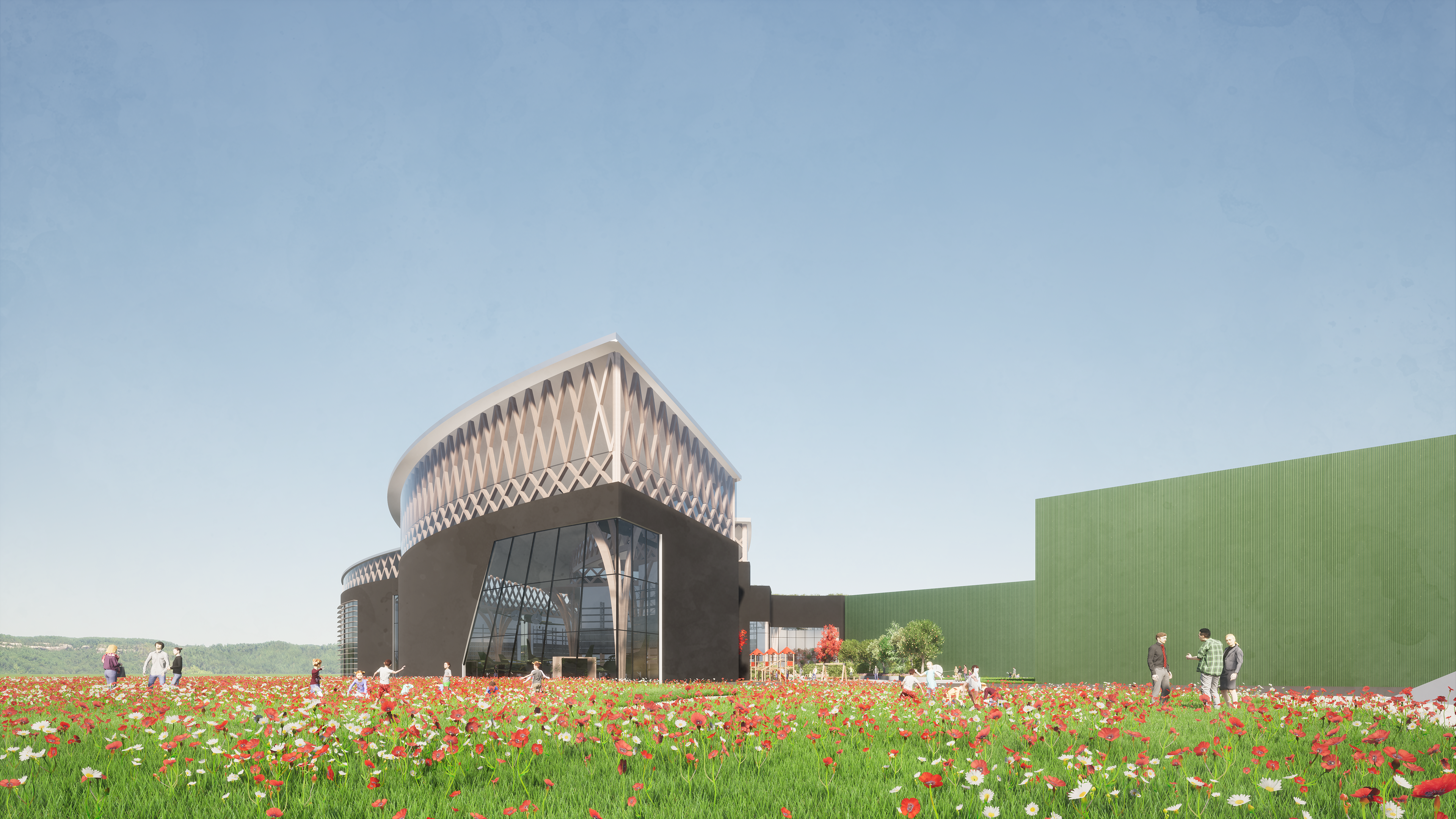

Approach from the cold war museum
Main walk way
Outdoor gathering space
View of the entrance to the collection hub

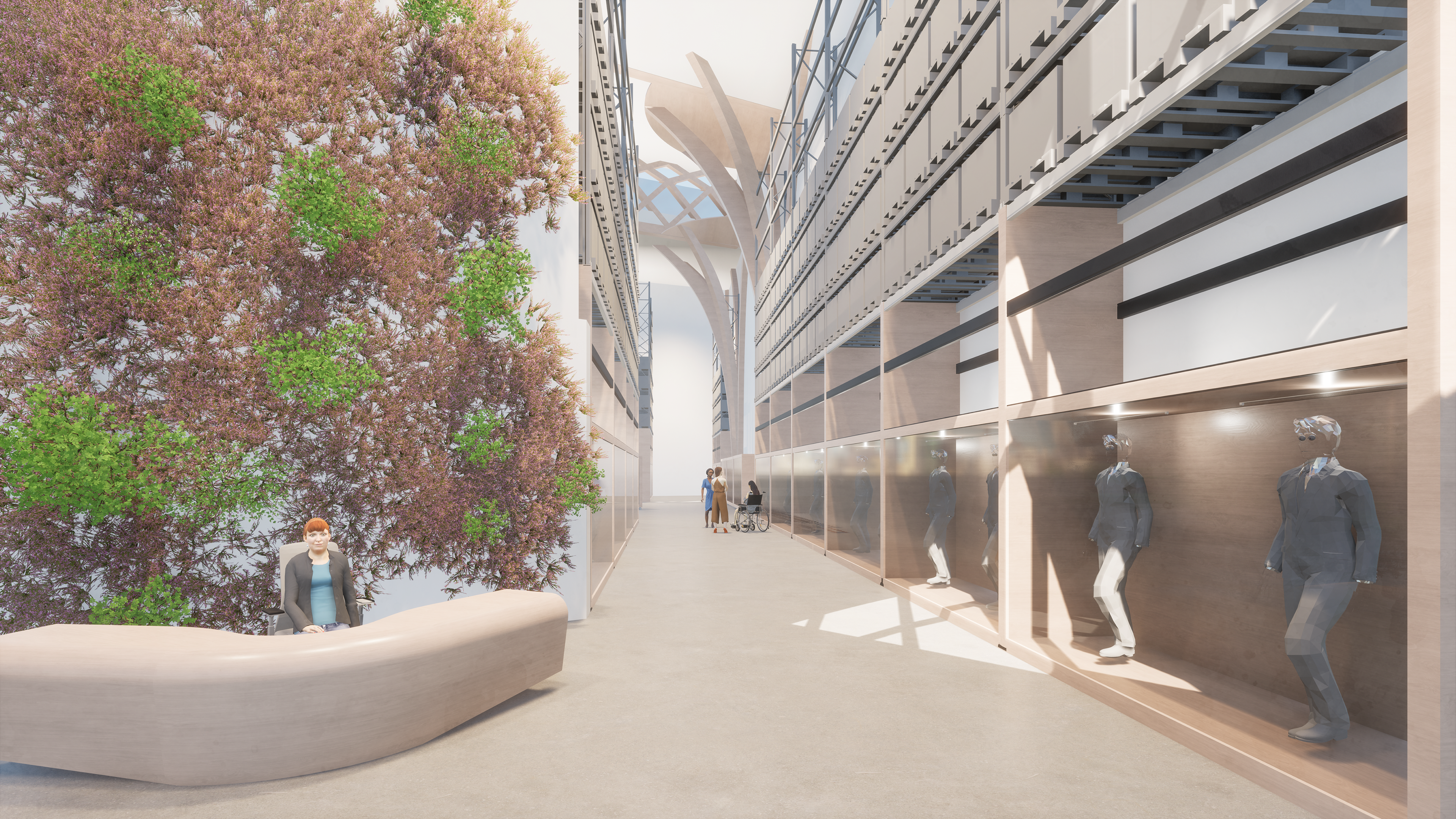

Main entrance area

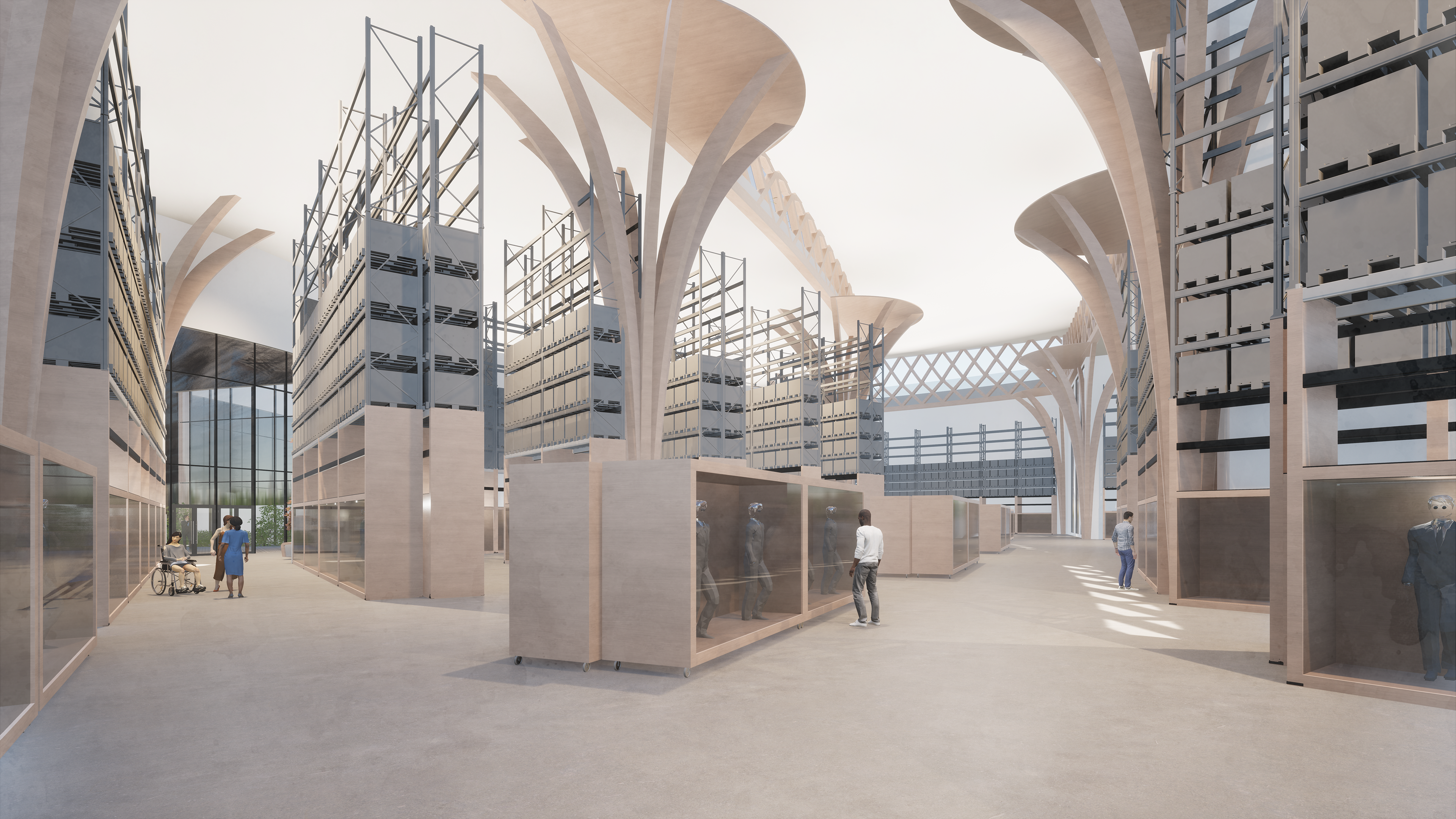

View of the mixture of racking and display cases

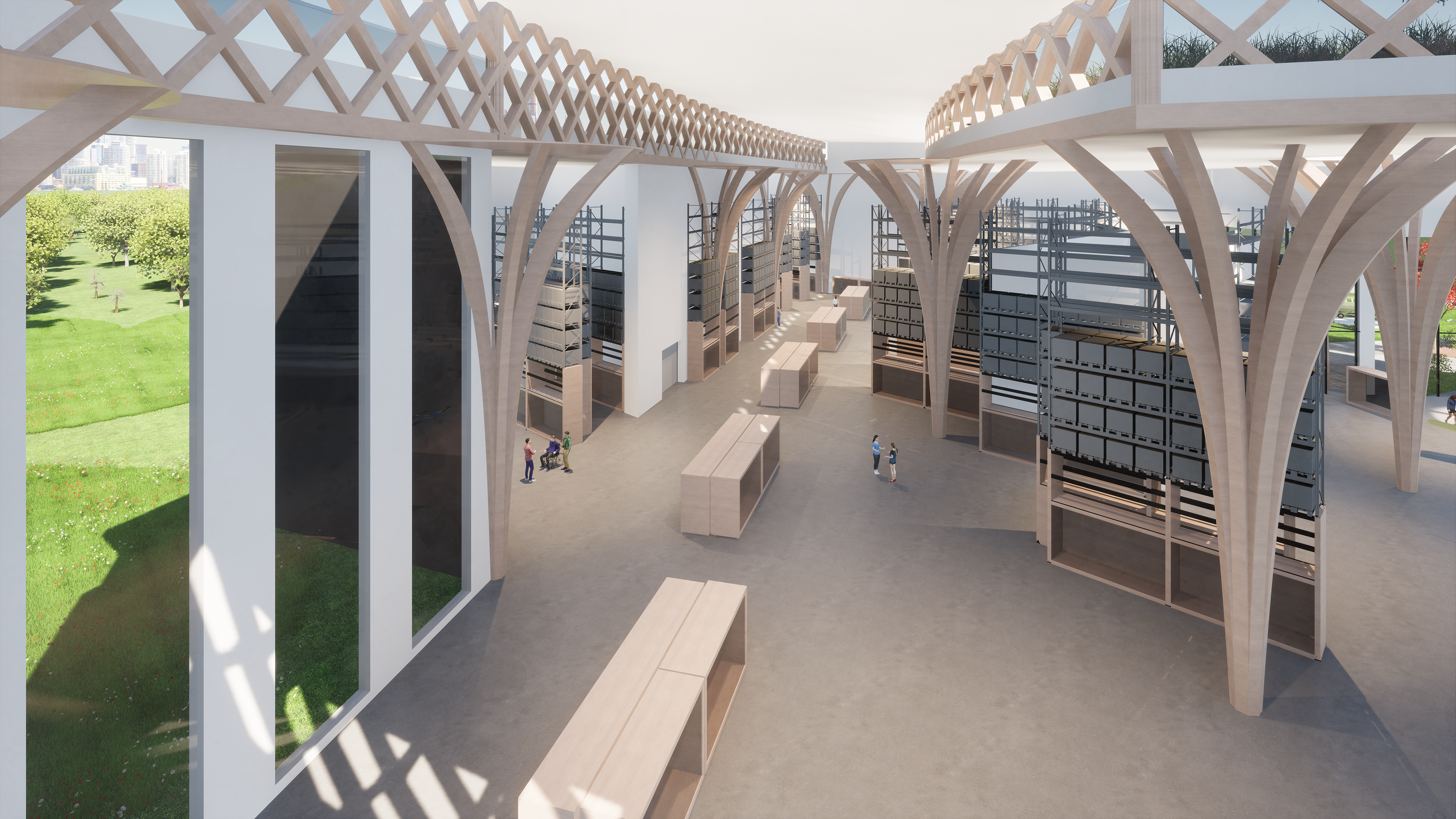

view looking back on small object storage area

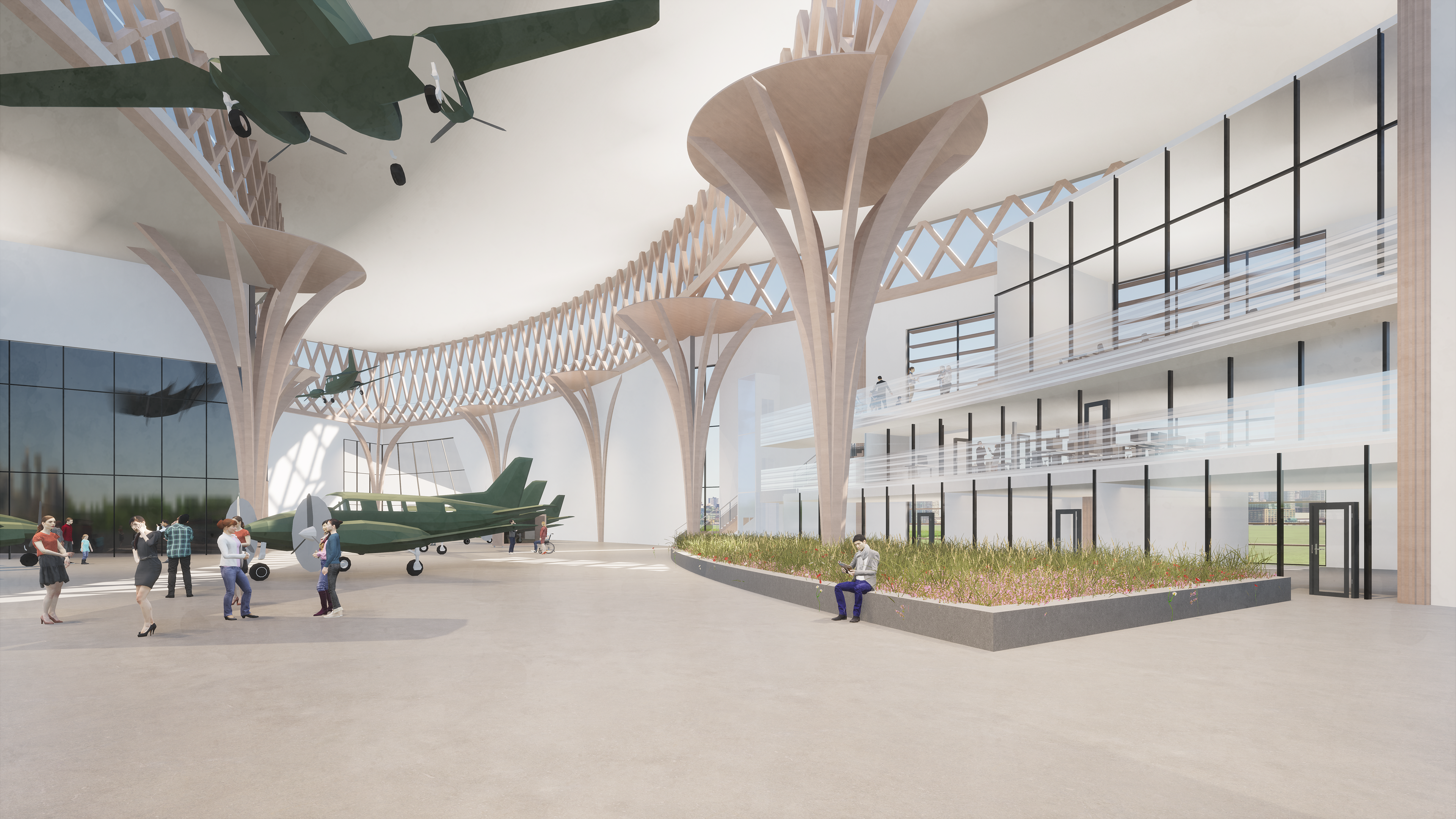

Internal garden, learning and staff areas

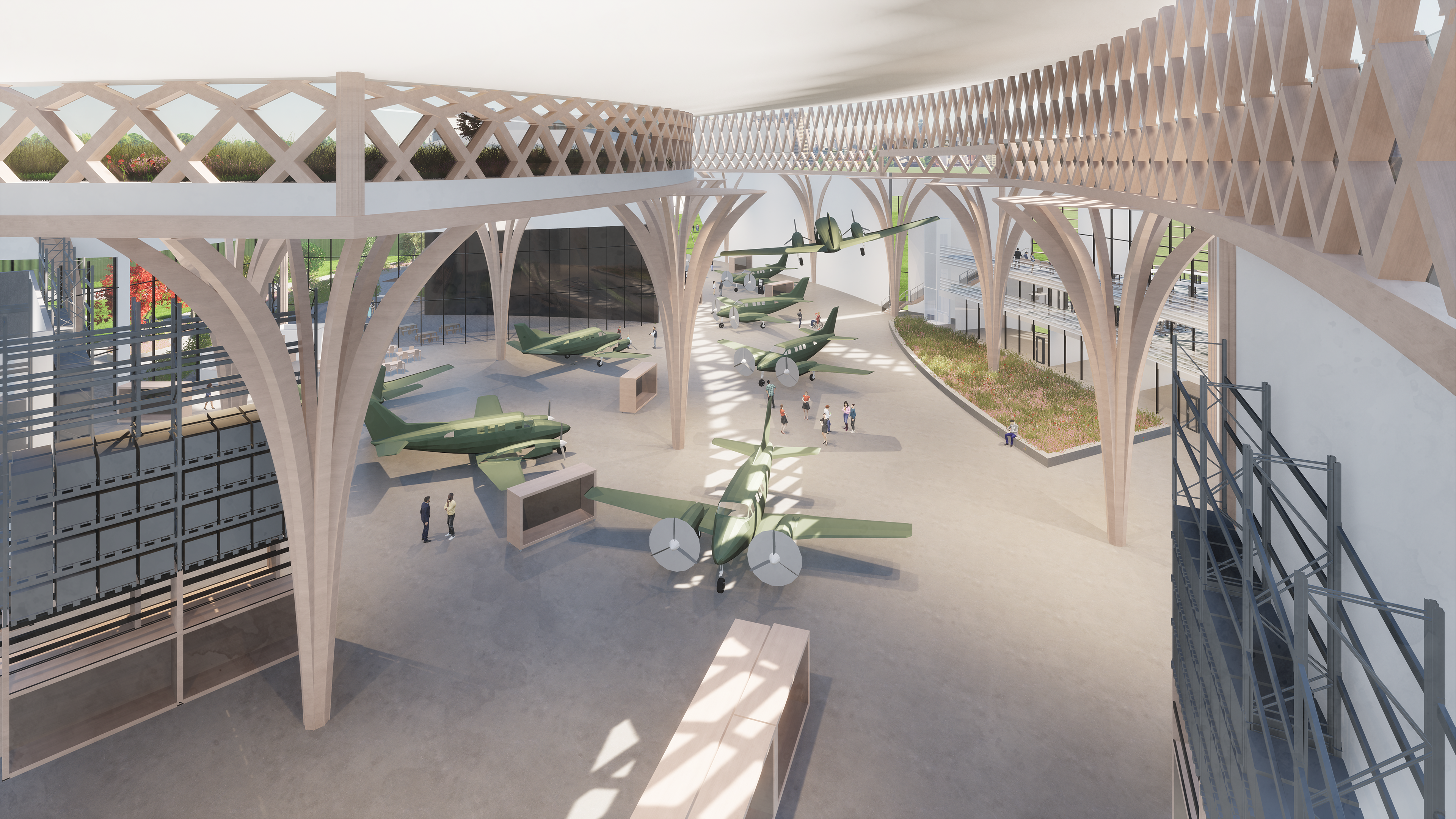

view showing the lattice structure and large object display

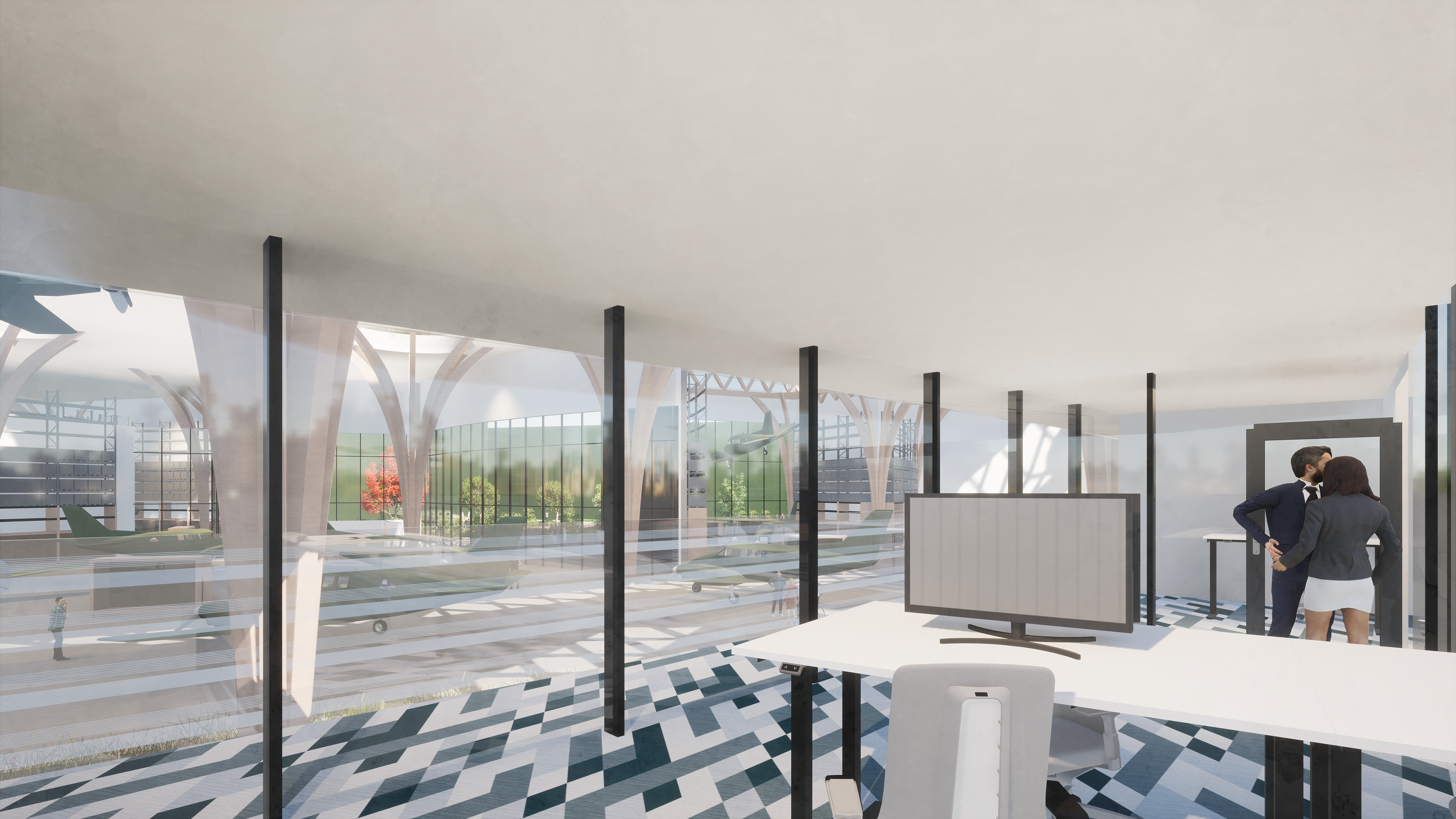

View from staff desk

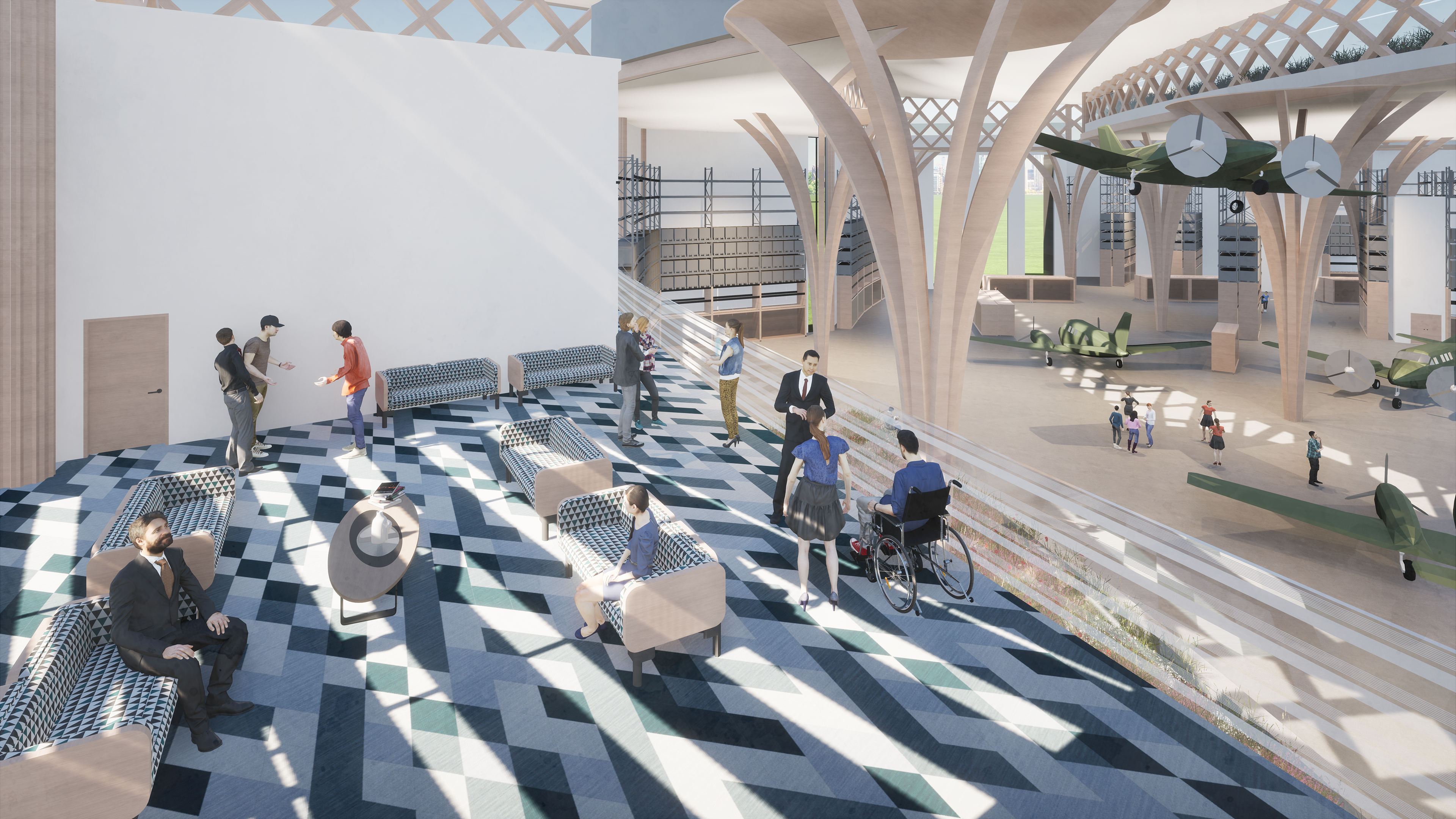

Staff and Meeting room breakout space

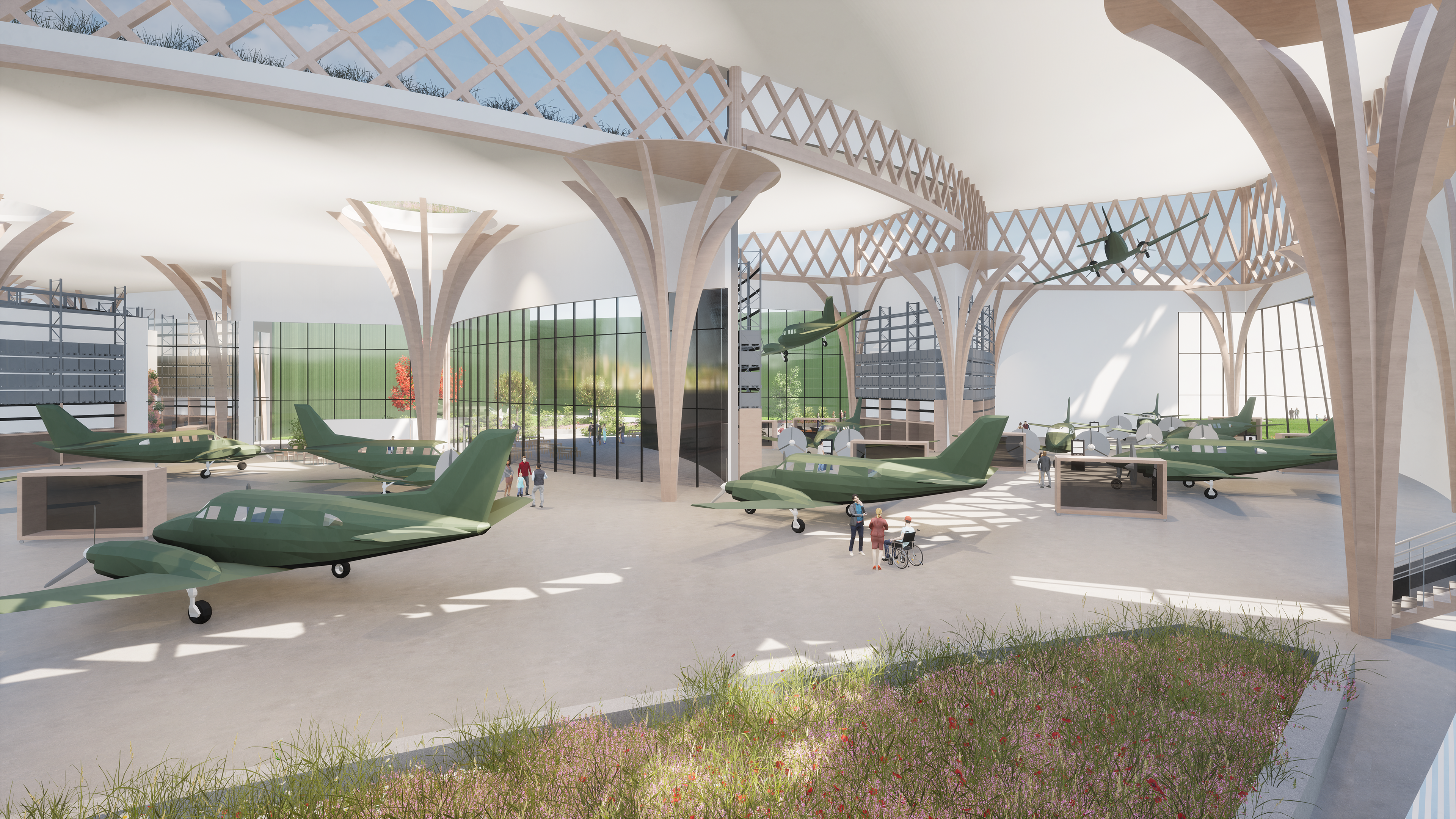

View from the staff office balcony

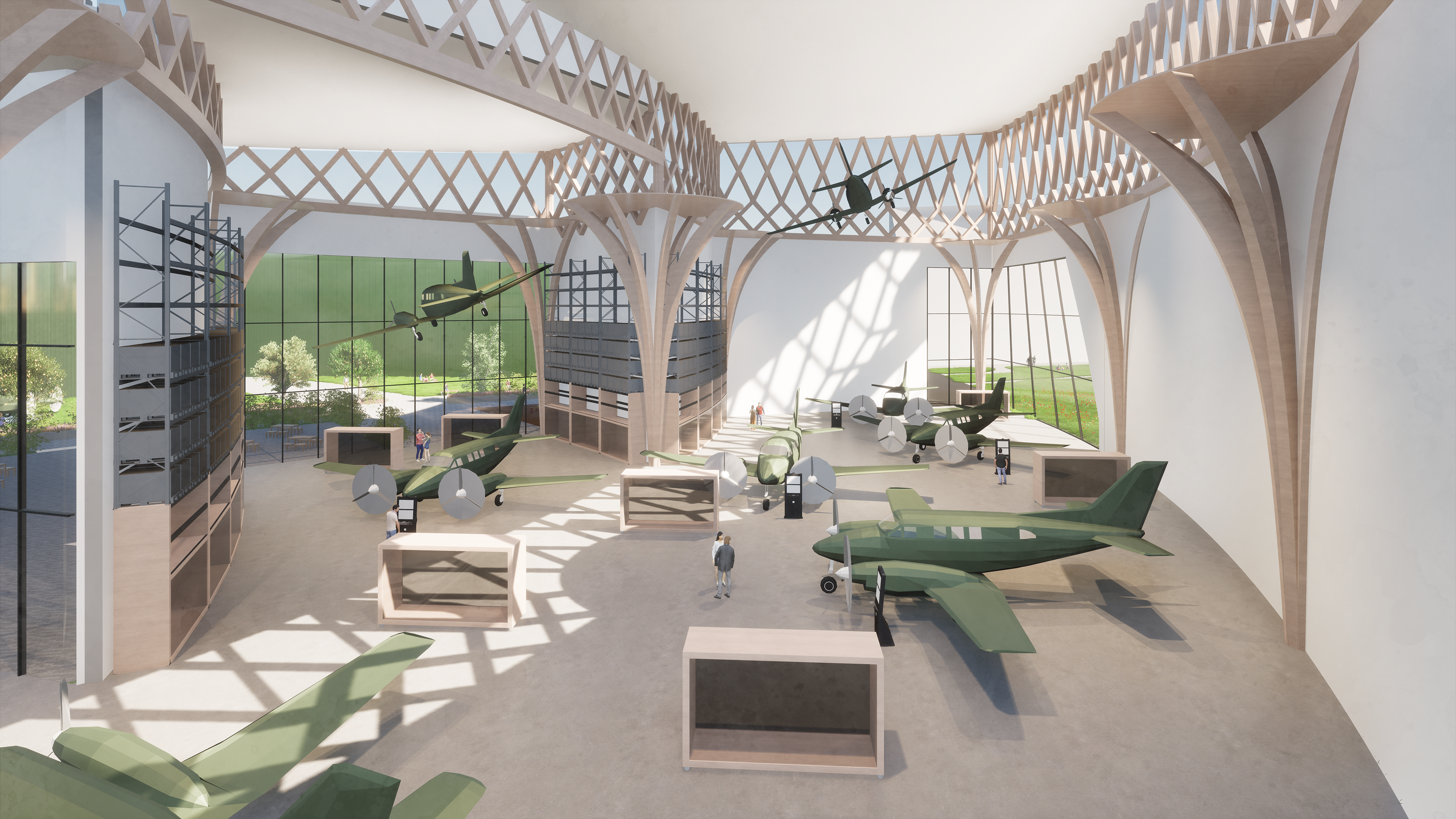

View from the lift looking at the large object displays

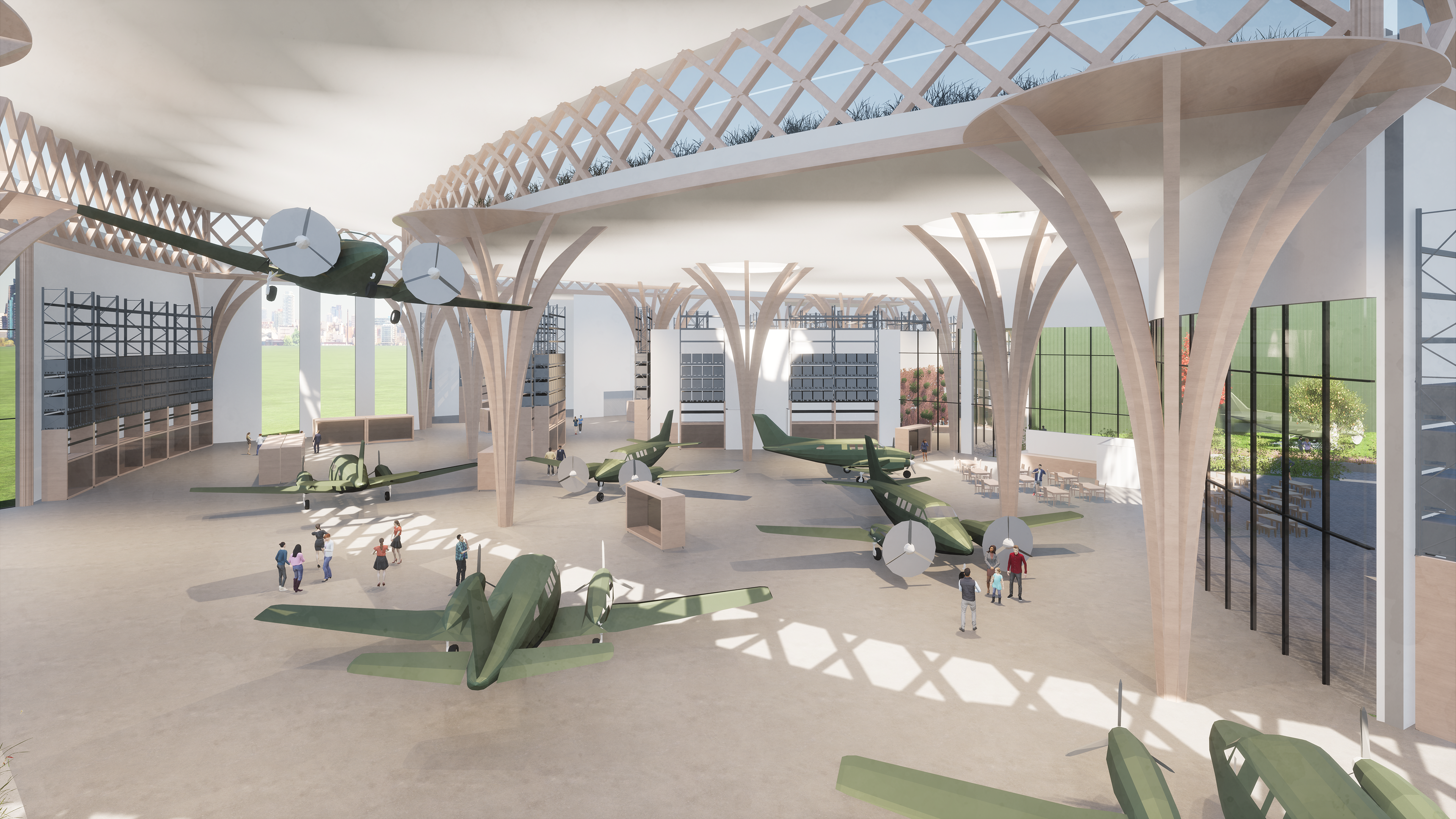

Large object display and cafe area
